Name: 767039-5
Brand: TE Connectivity AMP Connectors
SKU: 767039-5
Price: 119.64000 USD
Availability: InStock

new

767039-5

Manufacturer part number:767039-5

Manufacturer:TE Connectivity AMP Connectors

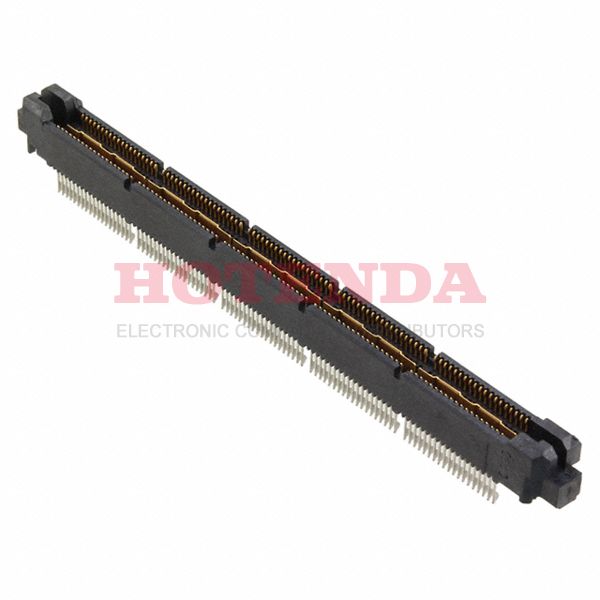

Description:Plug, Outer Shroud ContactsTube2 Rows0.025 0.64mmBoard Edge, Straddle Mount190 PositionsMICTORGoldSMD/SMT

Case Package:SOT-23

Datasheet:767039-5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Mount	Edge, Straddle Mount
Mounting Type	Board Edge, Straddle Mount
Housing Material	Polymer
PCB Mount Retention	Without
Underplate Material	Nickel
Packaging	Tube
Published	2007
Series	MICTOR
Feature	Board Guide, Ground Bus (Plane)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
Connector Type	Plug, Outer Shroud Contacts
Number of Positions	190
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Color	Black
Number of Rows	2
Gender	Male
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.025 0.64mm
Total Number of Contacts	190
Orientation	Straight
Depth	6.38mm
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Operating Supply Voltage	30V
Contact Style	BELLOWED TYPE
Contact Resistance	10mOhm
Insulation Resistance	2MOhm
Row Spacing	5.79 mm
ELV	Compliant
Max Voltage Rating (AC)	30V
Polarization Key	POLARIZED HOUSING
Contact Pattern	RECTANGULAR
Withdrawl Force-Min	.139 N
Contact Current Rating	11.5A
Circuit Application	Signal
Data Rate	10 Gbps
Number of Power Positions	5
Number of Columns	95
Stackable	No
Differential Signaling	Yes
Height	6.3754mm
Length	76.2mm
Width	5.2832mm
Contact Finish Thickness	30.0μin 0.76μm
Contact Finish Thickness - Mating	120 nm
Height Above Board	0.251 6.38mm
PCB Thickness	23.368mm
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0

767039-5 Product Details

767039-5 Overview

Currently, it is packaged in Plug, Outer Shroud Contacts.A Tube case is used to package the product.The mounting type of the device is Board Edge, Straddle Mount.A product of the MICTOR Series, it belongs to the range of products of that series.The operating system can be configured to maintain the value of Board Guide, Ground Bus (Plane) when it operates.Using a Edge, Straddle Mount socket is required in order to mount the item.A temperature below 125°C is best for using it.The device must run at -55°C degrees.As this device is suitable for the operation with a 30V supply, it should be used with that supply.
