Name: BCS-144-L-S-PE-003
Brand: Samtec Inc.
SKU: BCS-144-L-S-PE-003
Availability: InStock

new-10%

BCS-144-L-S-PE-003

Manufacturer part number:BCS-144-L-S-PE-003

Manufacturer:Samtec Inc.

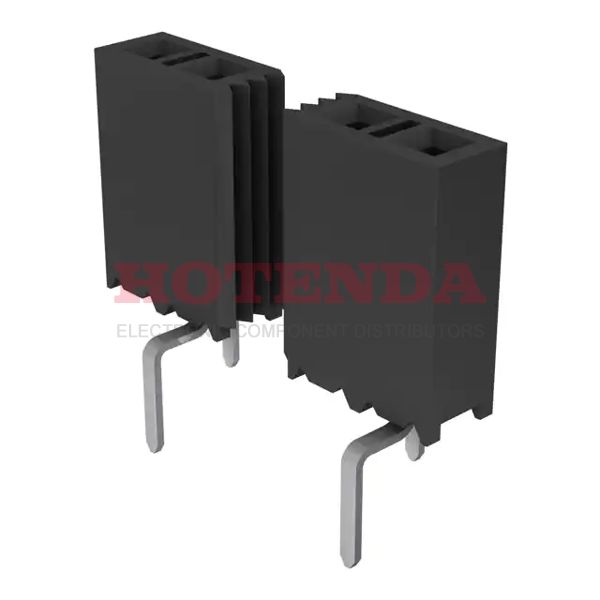

Description:1 Rows Receptacle, Pass Through Solder Phosphor Bronze Through Hole Tube Gold Liquid Crystal Polymer (LCP), Glass Filled 44 Positions Female Socket

Case Package:SOT-23

Datasheet:BCS-144-L-S-PE-003 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	Tiger Claw™ BCS
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle, Pass Through
Number of Positions	44
Number of Rows	1
Voltage - Rated	475VAC
Additional Feature	STAGGERED CONFIGURATION
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.6A per Contact
Terminal Pitch	2.54mm
Insulation Height	0.290 7.37mm
Style	Board to Board
Number of Positions Loaded	43
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Body Length or Diameter	4.4 inch
Contact Length - Post	0.128 3.25mm
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	STAGGERED
UL Flammability Code	94V-0
Body Depth	0.29 inch
Insulation Resistance	5000000000Ohm
Polarization Key	POLAR PIN POSITION
Dielectric Withstanding Voltage	375VAC V
PCB Contact Row Spacing	5.08 mm
Durability	500 Cycles
Withdrawl Force-Min	.834 N
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

BCS-144-L-S-PE-003 Product Details

BCS-144-L-S-PE-003 Overview

A Receptacle, Pass Through packaging is included.It's mounted Through Hole.We use a Tube case to package the product.It's from the Tiger Claw™ BCS Series.There are also other features like STAGGERED CONFIGURATION, to name a few.-55°C~125°C Operating Temperature is what the device runs at.
