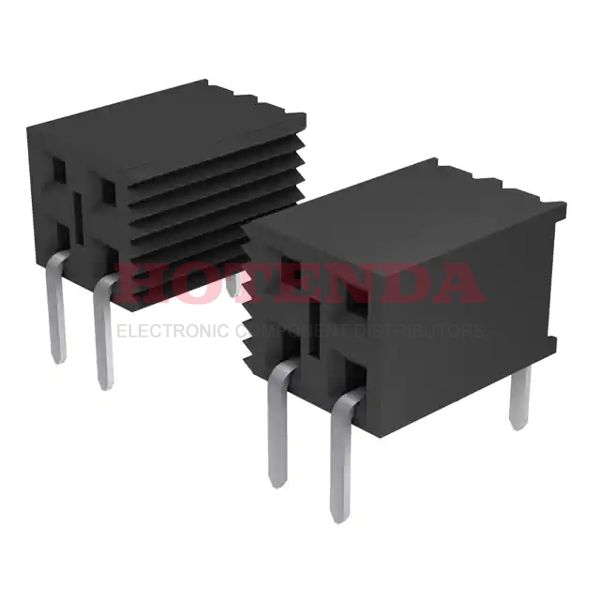

Name: BCS-121-F-D-HE
Brand: Samtec Inc.
SKU: BCS-121-F-D-HE
Availability: InStock

new-10%

BCS-121-F-D-HE

Manufacturer part number:BCS-121-F-D-HE

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeThrough Hole, Right AngleTubeGoldLiquid Crystal Polymer (LCP), Glass Filled42 PositionsFemale Socket

Case Package:SOT-23

Datasheet:BCS-121-F-D-HE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	Tiger Claw™ BCS
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	42
Number of Rows	2
Voltage - Rated	475VAC
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.6A per Contact
Insulation Height	0.210 5.33mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.125 3.18mm
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

BCS-121-F-D-HE Product Details

BCS-121-F-D-HE Overview

A Receptacle package is included with it.There is a mounting type of Through Hole, Right Angle for this device.The product is packaged in a Tube case.It is part of the Tiger Claw™ BCS Series of products.Operating temperature is set to -55°C~125°C.
