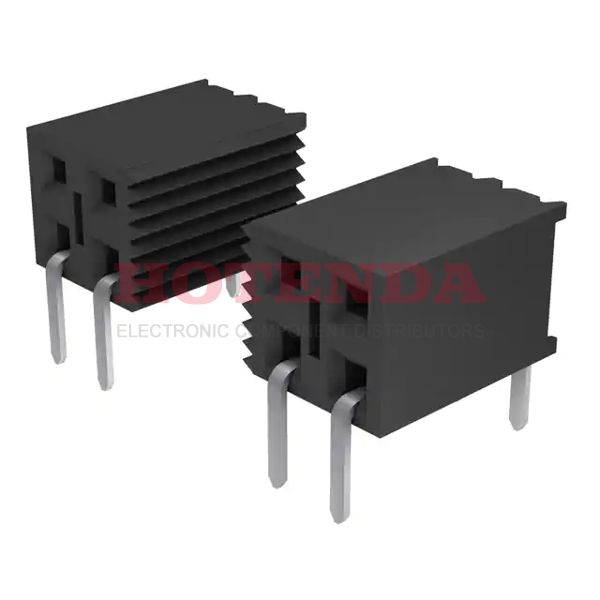

Name: BCS-130-T-D-HE
Brand: Samtec Inc.
SKU: BCS-130-T-D-HE
Price: 9.80000 USD
Availability: InStock

new

BCS-130-T-D-HE

Manufacturer part number:BCS-130-T-D-HE

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeThrough Hole, Right AngleTubeTinLiquid Crystal Polymer (LCP), Glass Filled60 PositionsFemale Socket

Case Package:SOT-23

Datasheet:BCS-130-T-D-HE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2016
Series	Tiger Claw™ BCS
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	60
Number of Rows	2
Gender	Female
Voltage - Rated	475VAC
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.6A per Contact
Insulation Height	0.210 5.33mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.125 3.18mm
UL Flammability Code	94V-0
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

BCS-130-T-D-HE Product Details

BCS-130-T-D-HE Overview

Currently, it is packaged in Receptacle.Mounting type Through Hole, Right Angle is selected for the device.It has been determined that a Tube case is necessary to package the product.Specifically, it is one of the products in the Tiger Claw™ BCS Series.There is a mounting hole at Through Hole.Operating temperature is set to -55°C~125°C.
