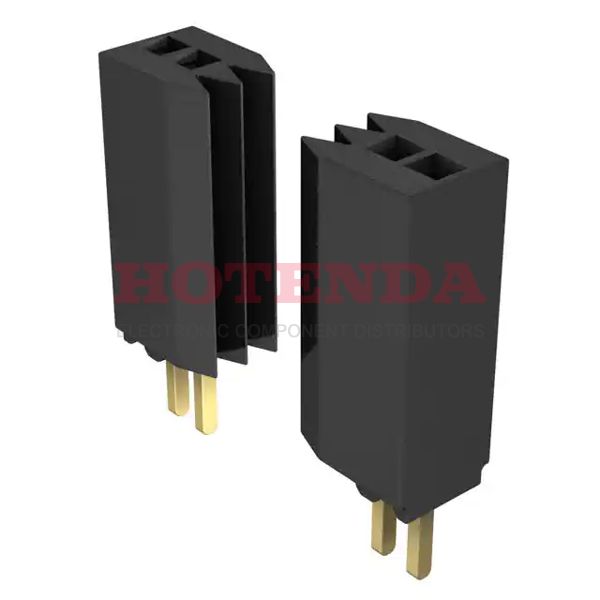

Name: SMS-110-01-G-S
Brand: Samtec Inc.
SKU: SMS-110-01-G-S
Price: 2.86000 USD
Availability: InStock

new-10%

SMS-110-01-G-S

Manufacturer part number:SMS-110-01-G-S

Manufacturer:Samtec Inc.

Description:1 RowsReceptacleSolderPhosphor BronzeThrough HoleTubeGoldLiquid Crystal Polymer (LCP)10 PositionsForked

Case Package:SOT-23

Datasheet:SMS-110-01-G-S Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2000
Series	SMS
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	10
Number of Rows	1
Additional Feature	TIGER BUY
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Forked
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	5A per Contact
Insulation Height	0.335 8.51mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Body Length or Diameter	0.5 inch
Contact Length - Post	0.100 2.54mm
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	FEMALE
Body Depth	0.335 inch
Mating Contact Pitch	0.05 inch
Insertion Force-Max	2.224 N
Plating Thickness	20μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Contact Finish Thickness - Post	3.00μin 0.076μm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

SMS-110-01-G-S Product Details

SMS-110-01-G-S Overview

Packaging is Receptacle.Through Hole is the mounting type for the device.We package the product with a Tube case.This is from the SMS Series.There are also other features such as TIGER BUY, to name only a few.Mounting of the part is based on Through Hole.-55°C~125°C Operating Temperature is what the device runs at.
