CD74ACT374E Overview

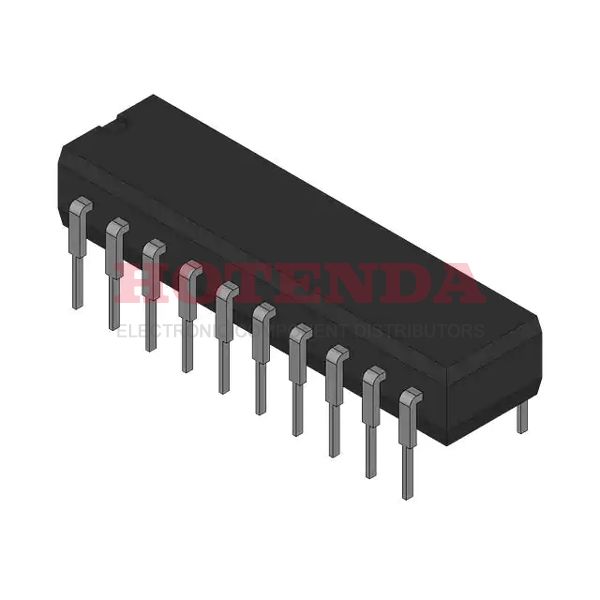

The flip flop is packaged in a case of 20-DIP (0.300, 7.62mm). It is contained within the Tubepackage. The output it is configured with uses Tri-State, Non-Inverted. It is configured with a trigger that uses a value of Positive Edge. Through Holemounts this electrical part. A voltage of 4.5V~5.5Vis required for its operation. In this case, the operating temperature is -55°C~125°C TA. There is D-Type type of electronic flip flop associated with this device. In terms of FPGAs, it belongs to the 74ACT series. A frequency of 110MHzshould not be exceeded by its output. A total of 1elements are present in it. During its operation, it consumes 8μA quiescent energy. A total of 20terminations have been recorded. Power is supplied from a voltage of 5V volts. Its input capacitance is 10pFfarads. This D flip flop belongs to the family of ACT. It reaches 5.5Vwhen the maximum supply voltage (Vsup) is applied. For normal operation, the supply voltage (Vsup) should be kept above 4.5V. A total of 2ports are embedded in the D flip flop.
CD74ACT374E Features
Tube package
74ACT series
CD74ACT374E Applications
There are a lot of Rochester Electronics, LLC CD74ACT374E Flip Flops applications.
- Buffered Clock
- Pattern generators
- High Performance Logic for test systems
- Differential Individual
- Bounce elimination switch
- Asynchronous counter
- Safety Clamp
- Storage registers
- Data Synchronizers
- Guaranteed simultaneous switching noise level
