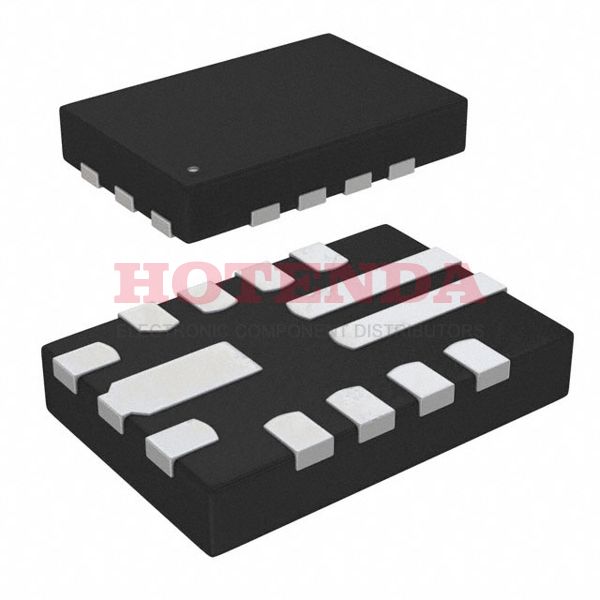

Name: RT6236ALGQUF
Brand: Richtek USA Inc.
SKU: RT6236ALGQUF
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	13-UFQFN Exposed Pad
Number of Pins	13
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2015
Series	ACOT™
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	13
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Function	Step-Down
Number of Outputs	1
Voltage - Input (Max)	18V
Output Type	Adjustable
Voltage - Input (Min)	4.5V
Input Voltage-Nom	12V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Current - Output	6A
Max Output Voltage	8V
Voltage - Output (Min/Fixed)	0.7V
Topology	Buck
Control Mode	CURRENT-MODE
Frequency - Switching	650kHz
Synchronous Rectifier	Yes
Min Output Voltage	700mV
Height Seated (Max)	0.6mm
Length	3mm
Width	2mm
RoHS Status	ROHS3 Compliant

RT6236ALGQUF Product Details

RT6236ALGQUF Overview

For optimal performance, this voltage regulator uses the Tape & Reel (TR) package. In this voltage regulator, 13 terminations are present. This regulator voltage is equipped with a type of analog integrated circuit that is called a SWITCHING REGULATOR voltage regulator. There is a 13-UFQFN Exposed Pad package available for this voltage regulator, as DC DC switching regulator is space-saving. There are 1 outputs configured on this voltage regulator 12v. As you can see, this DC DC switching regulator generates Adjustable output on its output pins. There is a switching regulator that is compatible with the Surface Mount mounting. During switching regulator operation, the operating temperature should remain at -40°C~85°C TA. This DC-DC switching regulator has a switching frequency of 650kHz. A dc to dc voltage regulator's minimum input voltage of 4.5V is required for this voltage regulator to operate. The output voltage (Min/Fixed) of this voltage regulator 12v is 0.7V. The output current of 6A makes dc to dc voltage regulator feature maximum design flexibility. 18V volts is DC DC switching regulator's maximum input voltage. With its peak reflow temperature of NOT SPECIFIED, this voltage regulator is essentially indestructible. In order to meet the operation requirements,voltage regulator is designed to provide a nominal input voltage of 12V. There are 13 pins that are used for the operation of the voltage regulator 12v. In order to use this voltage regulator 12v at its full potential, the output voltage should be kept at at least 700mV. The maximum output voltage of this regulator voltage is 8V. As a member of the ACOT? family of DC/DC regulators, this part is prominent in many specifications.
