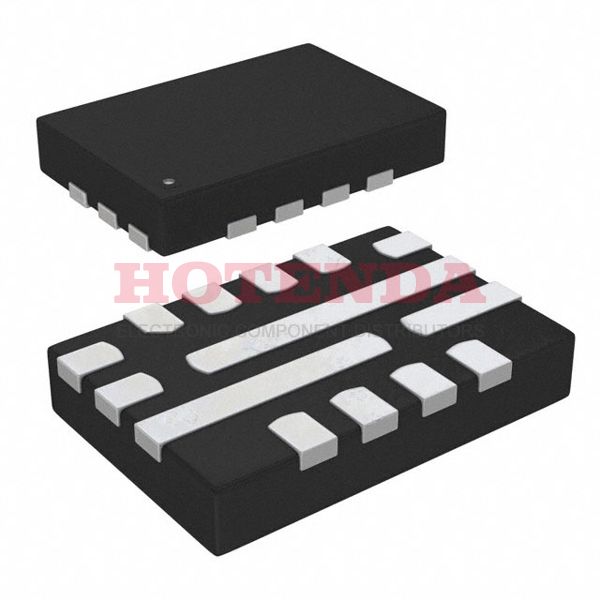

Name: RT6238ALGQUF
Brand: Richtek USA Inc.
SKU: RT6238ALGQUF
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	14-UFQFN
Number of Pins	14
Supplier Device Package	14-UQFN (2x3)
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2015
Series	ACOT™
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Function	Step-Down
Number of Outputs	1
Voltage - Input (Max)	18V
Output Type	Adjustable
Voltage - Input (Min)	4.5V
Output Configuration	Positive
Current - Output	8A
Max Output Voltage	8V
Voltage - Output (Min/Fixed)	0.7V
Topology	Buck
Min Input Voltage	4.5V
Frequency - Switching	500kHz
Max Input Voltage	18V
Synchronous Rectifier	Yes
Min Output Voltage	700mV
Voltage - Output (Max)	8V
RoHS Status	ROHS3 Compliant

RT6238ALGQUF Product Details

RT6238ALGQUF Overview

As a result of the use of the Tape & Reel (TR) package, the performance of this voltage regulator is optimized. Space savings are achieved by placing this voltage regulator in the 14-UFQFN package. A total of 1 outputs are configured in this voltage regulator. DC DC switching regulators like this one generate Adjustable outputs on their output pins to handle the power management. There is a switching regulator that is compatible with the Surface Mount mounting. -40°C~85°C TA should be the operating temperature when voltage regulator is operating. The switching frequency of this DC-DC switching regulator reaches 500kHz. Voltage regulators like this one can operate at least with 4.5V as the dc to dc voltage regulator's minimum input voltage. As a result, the output voltage of the voltage regulator 12v (Min/Fixed) is 0.7V. Featuring a maximum design flexibility of 8A, dc to dc voltage regulator has a maximum output current of 8A. There is a voltage regulator maximum input voltage of 18V. To operate the voltage regulator 12v, 14 pins are required. There should be at least a 700mV volt output voltage for this switching regulator in order to make it work properly. The maximal output voltage of 8V allows DC DC switching regulator to be operated easily. There is a maximum output voltage of 8V from this voltage regulator 12v. As a member of the ACOT? family of DC/DC regulators, this part is prominent in many specifications. Stable operation of switching regulator is ensured by the high maximum operating temperature 85°C. A minimum operating temperature of -40°C is required to ensure harley voltage regulator's reliability. It supports a dc to dc voltage regulator's minimum input voltage of 4.5V. It is designed to sustain a dc to dc voltage regulator's maximum 18V input voltage.
