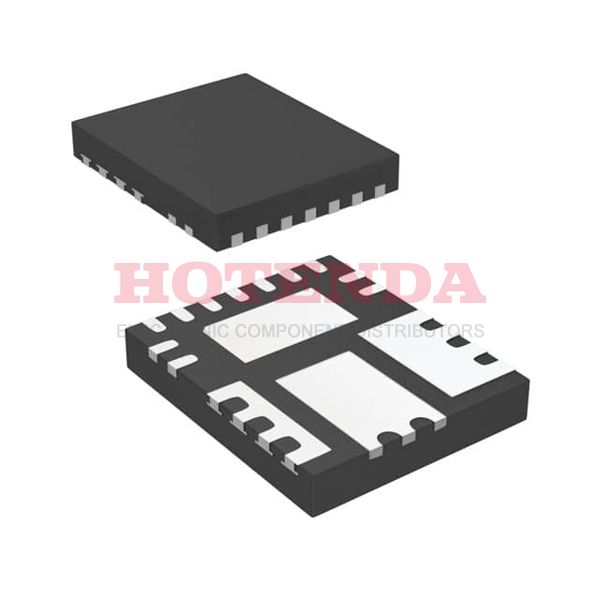

Name: IR3802MTRPBF
Brand: Infineon Technologies
SKU: IR3802MTRPBF
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	15-PowerVQFN
Number of Pins	15
Operating Temperature	-40°C~125°C TJ
Packaging	Tape & Reel (TR)
Published	2008
Series	SupIRBuck®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	15
ECCN Code	EAR99
Voltage - Rated	12V
Subcategory	Switching Regulator or Controllers
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	IR3802
Function	Step-Down
Number of Outputs	1
Voltage - Input (Max)	21V
Output Voltage	12V
Output Type	Adjustable
Max Output Current	4A
Operating Supply Voltage	14V
Voltage - Input (Min)	2.5V
Input Voltage-Nom	12V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Max Output Voltage	12V
Voltage - Output (Min/Fixed)	0.6V
Topology	Buck
Control Mode	VOLTAGE-MODE
Frequency - Switching	600kHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	Yes
Min Output Voltage	600mV
Height	939.8μm
Length	5.9944mm
Width	5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

IR3802MTRPBF Product Details

IR3802MTRPBF Overview

It is designed to provide optimal performance by utilizing the Tape & Reel (TR) package. In this voltage regulator, there are 15 terminations. As a matter of fact, the type of analog IC that this voltage regulator 12v is equipped with is called SWITCHING REGULATOR. In order to save space, this voltage regulator is packaged in the 15-PowerVQFN package. There are 1 outputs configured on this voltage regulator 12v. On its output pins, this adjusting voltage regulator generates Adjustable output. The voltage regulator 12v fits the Surface Mount mounting hole. During switching regulator operation, the operating temperature should remain at -40°C~125°C TJ. This DC-DC switching regulator has a switching frequency of 600kHz. This voltage regulator is able to operate with the minimal input voltage of 2.5V. DC DC switching regulator's output voltage (Min/Fixed) amounts to 0.6V. The maximum input voltage of this voltage regulator 12v is 21V. As a result of the 260 peak reflow temperature, this regulator is essentially indestructible. As a result of DC DC switching regulator's design, it is designed to provide an input voltage of 12V for the purposes of operation. This voltage regulator is included in the Switching Regulator or Controllers subcategory. As part of the IR3802 series of regulators, the voltage regulators can be found. A voltage of 12V volts can be generated by DC DC switching regulator. For switching regulator operation, 15 pins are used. Ideally this switch regulator should have an output voltage of about 600mV at the very least. A maximum output current of 4A A is available to meet the switching regulator operation requirements. It provides the adjusting voltage regulator's maximal output voltage of 12V. The switching DC-DC regulator belongs to the SupIRBuck? family of electronic voltage regulator 12vs. Switching regulators operate at 14V supply voltages.
