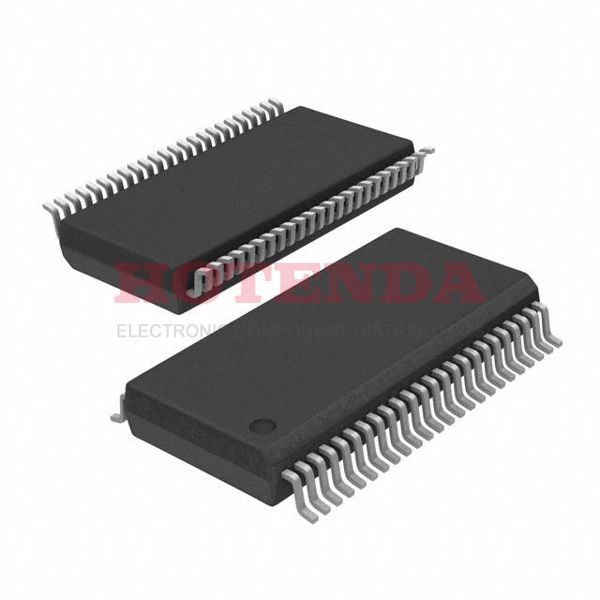

MK74CG117AF Overview
As a clock IC, PLLs is packaged using the Tube method. Embedded in the 48-BSSOP (0.295, 7.50mm Width) package is this Clock PLL. In this case, Clock, Crystal is designed to be the input of the clock generator. It is possible to access the full performance of the electrical part by implementing 1 circuits. RF synthesizers based on this clock provide frequencies up to 90MHz maximum. With the Surface Mount, it is easy to install this electric component on the panel. There should be 3.14V~3.47V provided with this RF synthesizer. The temperature should be set at 0°C~70°C to ensure reliable performance. Clock logic levels are supported by this RF synthesizer. This electronic component is usually classified as a Clock Generator component. According to the base part number MK74CG117, its related parts can be found.
MK74CG117AF Features
Available in the 48-BSSOP (0.295, 7.50mm Width)
MK74CG117AF Applications
There are a lot of Renesas Electronics America Inc. MK74CG117AF Clock Generators applications.
- Remote telemetry and instrumentation
- Electronic equipment
- Modems
- Microwave backhaul IF
- Precision auxiliary angle deflection measurement
- Vector network analyzers (VNA)
- Radio receivers
- Set-top boxes
- Motor speed controls
- Various decoding circuits
