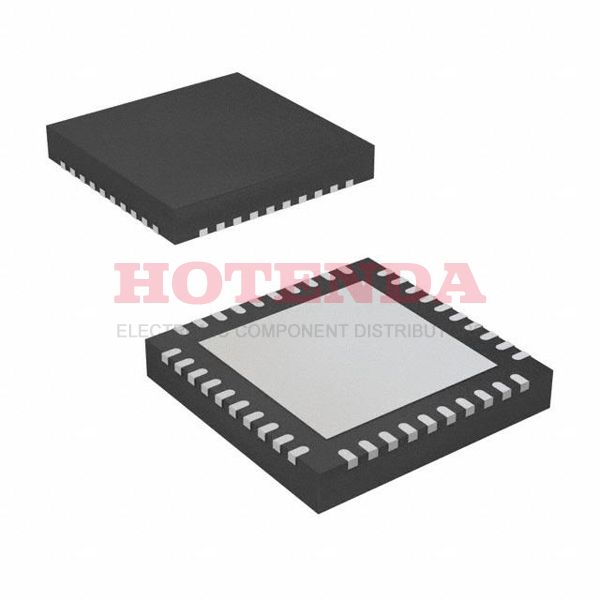

8T49N241NLGI8 Overview
Clock generator is packaged in the way of Tape & Reel (TR). Clock PLL is embedded in the 40-VFQFN Exposed Pad package. LVCMOS, LVDS, LVHSTL, LVPECL, Crystal is designed for clock generator's input. 1 circuits are used to achieve clock PLL's superior flexibility. 1GHz is the maximal value for normal operation. PLL clock is mounted in the way of Surface Mount. Clock generators should operate with the voltage supply of 2.375V~3.465V. The temperature should be set at -40°C~85°C TA to ensure reliable performance. HCSL, LVCMOS, LVDS, LVPECL is designed for clock generator's output. This electronic component can be classified into Frequency Translator, Jitter Attenuator. This clock generator is a member of FemtoClock® NG series.
8T49N241NLGI8 Features
Available in the 40-VFQFN Exposed Pad
8T49N241NLGI8 Applications
There are a lot of Renesas Electronics America Inc.
8T49N241NLGI8 Clock Generators applications.
- Wireless infrastructure
- Instrument
- Automatic test equipment
- Wide area power system
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
