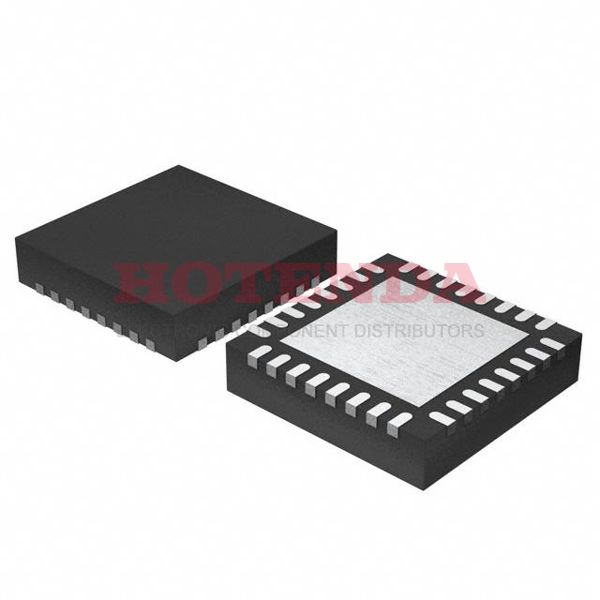

8735BKI-01LFT Overview
As a clock IC, it uses the Tape & Reel (TR) package. 32-VFQFN Exposed Pad contains this Clock PLL. HCSL, LVDS, LVHSTL, LVPECL is designed as this clock generator's input. An implementation of 1 circuits is required in order to fully utili1e the capabilities of the electrical part. An upper frequency limit of 700MHz Max can be achieved with this clock-based frequency synthesizer. Due to the Surface Mount-shape, this electronic component can be conveniently installed on the panel. Clock generators should operate with the voltage supply of 3.135V~3.465V. As determined by the test statistics, the ambient temperature should be set to -40°C~85°C. LVPECL logic levels are supported by this RF synthesizer.
8735BKI-01LFT Features
Available in the 32-VFQFN Exposed Pad
8735BKI-01LFT Applications
There are a lot of Renesas Electronics America Inc. 8735BKI-01LFT Clock Generators applications.
- Frequency synthesis
- Vector network analyzers (VNA)
- VSAT (Small Ground Satellite Station)
- Radio receivers
- Satellite navigation communication
- Wide area power system
- DVD add-on cards for multimedia PCs
- Satellite receivers
- Test and instrumentation equipment
- 1 Gigabit Ethernet
