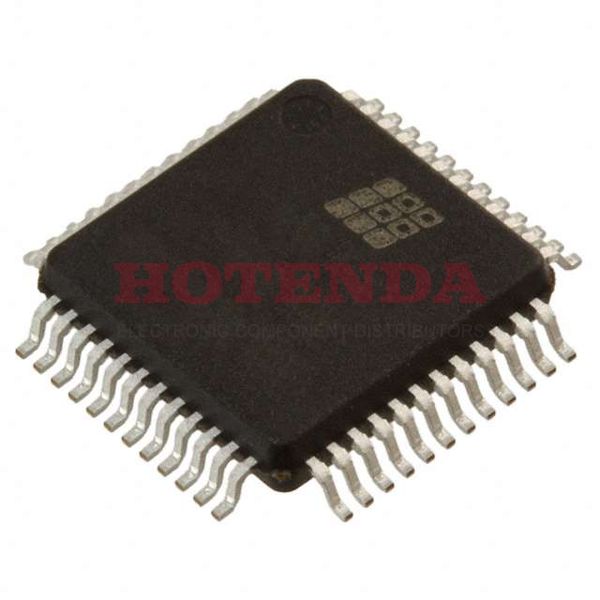

ISPPAC-CLK5308S-01TN48I Overview
Clock generator is packaged in the way of Tray. Clock PLL is embedded in the 48-LQFP package. The peak reflow temperature (Cel) amounts to 260 to be essentially indestructible. 48 terminations can be found in frequency generators. The supply voltage of 3.3V allows for high efficiency. HSTL, LVCMOS, LVDS, LVPECL, LVTTL, SSTL is designed for clock generator's input. 1 circuits are used to achieve clock PLL's superior flexibility. 267MHz is the maximal value for normal operation. PLL clock is mounted in the way of Surface Mount. The maximal supply voltage (Vsup) reaches 3.6V. The supply voltage (Vsup) should be kept above 3V for normal operation. Clock generators should operate with the voltage supply of 3V~3.6V. The temperature should be set at -40°C~85°C to ensure reliable performance. eHSTL, HSTL, LVCMOS, LVTTL, SSTL is designed for clock generator's output. This electronic component can be classified into Clock Generator, Fanout Distribution, Zero Delay Buffer. Clock PLL is equipped with 48 pin count. According to the base part number, its related parts can be founded. Clock generator is designed with 48 pins. The supply voltage should be maintained at 3.3V for high efficiency. Clock generator can also be included into Clock Drivers. This clock generator is a member of ispClock™ series. This clock generator belongs to the family of 5308.
ISPPAC-CLK5308S-01TN48I Features
Available in the 48-LQFP
Supply voltage of 3.3V
Operating supply voltage of 3.3V
ISPPAC-CLK5308S-01TN48I Applications
There are a lot of Lattice Semiconductor Corporation
ISPPAC-CLK5308S-01TN48I Clock Generators applications.
- Wireless infrastructure
- Instrument
- Automatic test equipment
- Wide area power system
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
