5P49EE805NDGI8 Overview

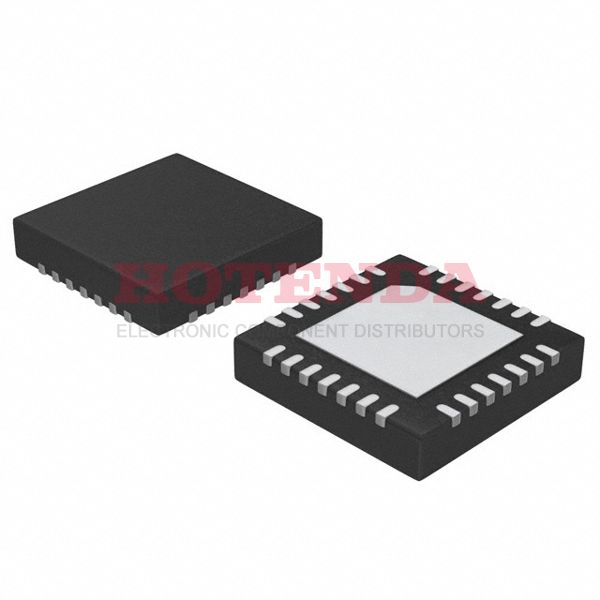

Clock ICs are packaged using the Tape & Reel (TR) method. There is a clock generator embedded in the 28-VFQFN Exposed Pad package. LVTTL, Crystal is designed for clock generator's input. To access the electronic component's full performance, 1 circuits are implemented. An upper frequency limit of 100MHz Max can be achieved with this clock-based frequency synthesizer. Due to the Surface Mount-shape, this electronic component can be conveniently installed on the panel. In terms of supply voltage, RF synthesizer works with 1.71V~3.465V. As determined by the test statistics, the ambient temperature should be set to -40°C~85°C. I would like to present to you a frequency synthesizer that is compatible with LVCMOS, LVTTL logic levels. According to the base part number IDT5P49EE805, its related parts can be found. This electronic part is a member of the VersaClock? series.
5P49EE805NDGI8 Features
Available in the 28-VFQFN Exposed Pad
5P49EE805NDGI8 Applications
There are a lot of Renesas Electronics America Inc. 5P49EE805NDGI8 Clock Generators applications.
- Microwave point-to-point systems
- Vector network analyzers (VNA)
- Signal analyzer
- Symbol synchronization
- Frequency synthesis
- Bit synchronization
- Wireless handsets
- Signal demodulation
- Bluetooth receivers
- Line cards used in telephone exchange
