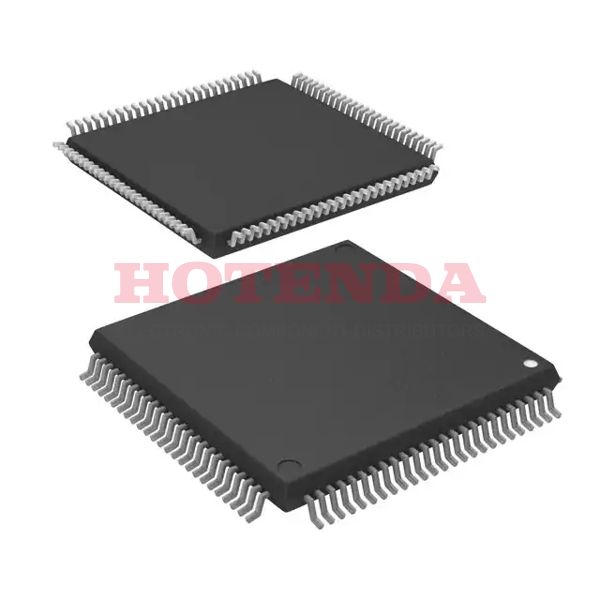

Name: R5F64114DFB
Brand: Renesas Electronics America
SKU: R5F64114DFB
Availability: InStock

new-10%

R5F64114DFB

Manufacturer part number:R5F64114DFB

Manufacturer:Renesas Electronics America

Description:Microcontroller 5V

Case Package:SOT-23

Datasheet:R5F64114DFB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	YES
Published	2012
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
ECCN Code	3A001.A.3
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	5V
Terminal Pitch	0.5mm
Pin Count	100
JESD-30 Code	S-PQFP-G100
Qualification Status	Not Qualified
Operating Temperature (Max)	85°C
Operating Temperature (Min)	-40°C
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	3.3/55V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	3V
Number of I/O	86
Speed	50 MHz
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Clock Frequency	50MHz
Supply Current-Max	45mA
Bit Size	32
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	YES
Address Bus Width	24
ROM (words)	262144
External Data Bus Width	16
RAM (bytes)	40960
ROM Programmability	FLASH
Length	14mm
Height Seated (Max)	1.7mm
Width	14mm
RoHS Status	ROHS3 Compliant

R5F64114DFB Product Details

R5F64114DFB Overview

There are 86 I/Os on the Microcontroller. This is a MICROCONTROLLER uPs/uCs/Peripheral IC. During the manufacturing process, 100 terminations were applied to the IC chip. 32-bits are used in Microcontroller. The MCU chip's supply output is 5V volts. Currently, MCU chip has YES DMA channels. There are YES PWM channels on the device. 100 pins are counted on this board. The clock function of this device is based on a 50MHz-frequency.
