Name: PIC18F43K22-E/MV
Brand: Microchip Technology
SKU: PIC18F43K22-E/MV
Availability: InStock

new-10%

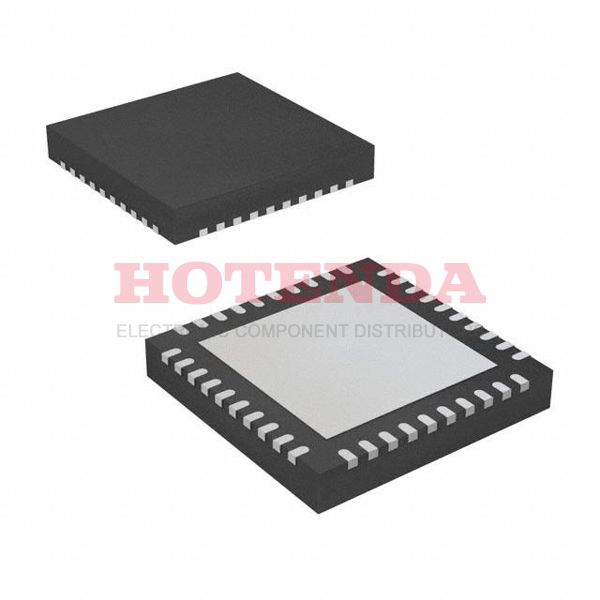

PIC18F43K22-E/MV

Manufacturer part number:PIC18F43K22-E/MV

Manufacturer:Microchip Technology

Description:8KB 4K x 16 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 18K Series PIC18F43K22 40 Pin 48MHz 5V 40-UFQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC18F43K22-E/MV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	40-UFQFN Exposed Pad
Surface Mount	YES
Number of Pins	40
Supplier Device Package	40-UQFN (5x5)
Interfaces	I2C/SPI/USART
Package	Tube
Base Product Number	PIC18F43
Mfr	Microchip Technology
Data Converters	A/D 30x10b
Product Status	Active
Number of I/Os	35
RoHS	Compliant
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	PIC® XLP™ 18K
Published	2012
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	40
ECCN Code	3A001.A.3
Terminal Finish	Matte Tin (Sn) - annealed
Max Operating Temperature	125 °C
Min Operating Temperature	-40 °C
Additional Feature	ALSO OPERATES 2.3V MINIMUM SUPPLY AT 16 MHZ
HTS Code	8542.31.00.01
Max Power Dissipation	1W
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.4mm
Frequency	48MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC18F43K22
Pin Count	40
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	2/5V
Interface	I2C, SPI, UART, USART
Max Supply Voltage	5.5 V
Min Supply Voltage	1.8 V
Memory Size	8kB
Oscillator Type	Internal
Number of I/O	35
Speed	48MHz
RAM Size	512 x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	2.3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, HLVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	8KB 4K x 16
Connectivity	I2C, SPI, UART/USART
Supply Current-Max	12mA
Bit Size	8
Data Converter	A/D 30x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	YES
Number of Timers/Counters	7
Core Architecture	PIC
EEPROM Size	256 x 8
On Chip Program ROM Width	16
CPU Family	PIC
Max Frequency	64 MHz
Number of Programmable I/O	36
Device Core	PIC
Length	5mm
Height Seated (Max)	0.55mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

PIC18F43K22-E/MV Product Details

PIC18F43K22-E/MV Overview

Packaged in a 40-UFQFN Exposed Pad format. A total of 35 I/Os are on the Microcontroller. Surface Mount is the mounting type of the Microcontroller that is attached to the panel. This Microcontroller is based on a core called 8-Bit. The type of its program memory is FLASH. In this Microcontroller, temperature is controlled within the range -40°C~125°C TA. A PIC® XLP™ 18K series electrical component is used in this application. This program has a program memory of 8KB 4K x 16 bytes, which is the size of the program. With a PIC Core Processor, Microcontroller is fast and efficient. ICs for MICROCONTROLLER, RISC uPs/uCs/peripheral parts. There are 40 terminations on the IC chip, which means there are 40 terminations on the integrated circuit chip. In addition, MCU chip comes with a 8-bit size. Microcontroller chip has outputs of 5V volts. The system has NO channels for DMA communication. There is 8kB memory size assigned to the part. Alternatives can be found by searching through the base part number PIC18F43K22 to find them. At a frequency of 48MHz, Microcontroller can operate efficiently. This MCU Chip uses YES PWM channels to operate. Chips have 40 pins. There are 7 timers/counters in this device. In total, it has 40 pins. The PIC CPU family is embedded in the device, so it can handle a wide range of operations. The equipment has a FLASH memory that is built in. It is equipped with a PIC core architecture which is integrated into it. In the 36 Programmable I/O section, it can be programmed in many different ways. As an example, one of the additional features that you can use is ALSO OPERATES 2.3V MINIMUM SUPPLY AT 16 MHZ.
