Name: MC9S12XET256CAG
Brand: NXP USA Inc.
SKU: MC9S12XET256CAG
Availability: InStock

new-10%

MC9S12XET256CAG

Manufacturer part number:MC9S12XET256CAG

Manufacturer:NXP USA Inc.

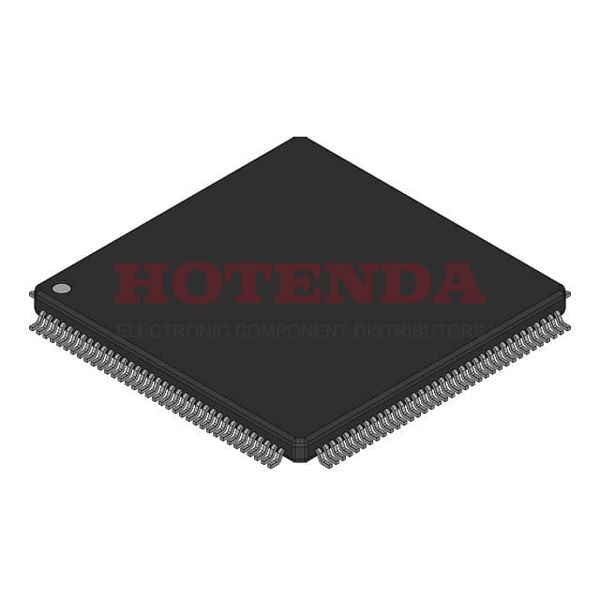

Description:256KB 256K x 8 FLASH 16-Bit Microcontroller HCS12X Series MC9S12XET256 1.8V 144-LQFP

Case Package:SOT-23

Datasheet:MC9S12XET256CAG Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Surface Mount
Package / Case	144-LQFP
Surface Mount	YES
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	HCS12X
Published	2001
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	144
ECCN Code	3A991.A.2
Terminal Finish	Matte Tin (Sn)
Additional Feature	IT ALSO REQUIRES 5 V I/O SUPPLY
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	1.8V
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	MC9S12XET256
JESD-30 Code	S-PQFP-G144
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	1.98V
Power Supplies	3.3/5V
Supply Voltage-Min (Vsup)	1.72V
Oscillator Type	External
Number of I/O	119
Speed	50MHz
RAM Size	16K x 8
Voltage - Supply (Vcc/Vdd)	1.72V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Peripherals	LVD, POR, PWM, WDT
Clock Frequency	40MHz
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	256KB 256K x 8
Connectivity	CANbus, EBI/EMI, I2C, IrDA, SCI, SPI
Bit Size	32
Data Converter	A/D 24x12b
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	NO
Address Bus Width	23
ROM (words)	262144
EEPROM Size	4K x 8
CPU Family	CPU12
External Data Bus Width	16
Length	20mm
Height Seated (Max)	1.6mm
Width	20mm
RoHS Status	ROHS3 Compliant

MC9S12XET256CAG Product Details

MC9S12XET256CAG Overview

This Microcontroller comes in a 144-LQFP package. This Microcontroller has 119 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 16-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in HCS12X Series. The size of the program memory of Microcontroller is 256KB 256K x 8. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 144 terminals. Microcontroller comes with 32 bit size. The component always operates in 1.8V supply voltage. MCU chip has NO DMA channels. You can find alternatives through the base part number MC9S12XET256. The device works in YES PWM channels. The device is embedded with CPU12 CPU family. It is at 40MHz clock frequency. To name a few, there are additional features like IT ALSO REQUIRES 5 V I/O SUPPLY.
