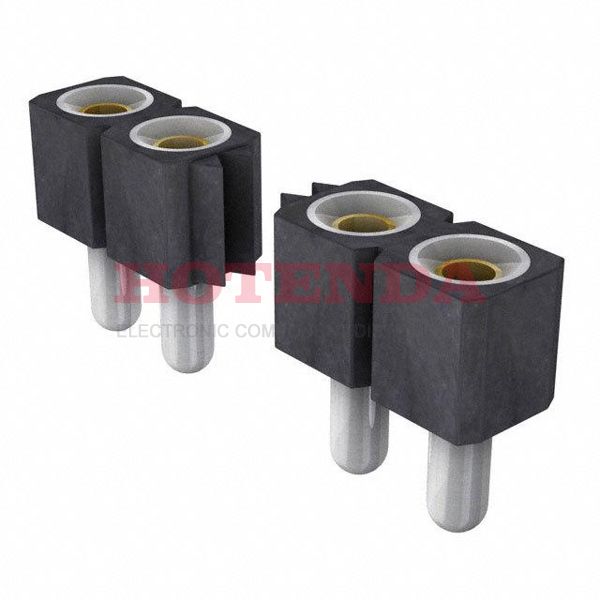

Name: 801-83-016-10-268101
Brand: Preci-Dip
SKU: 801-83-016-10-268101
Price: 2.35000 USD
Availability: InStock

new-10%

801-83-016-10-268101

Manufacturer part number:801-83-016-10-268101

Manufacturer:Preci-Dip

Description:801-83-016-10-268101 datasheet pdf and Rectangular Connectors - Headers, Receptacles, Female Sockets product details from Preci-Dip stock available on our website

Case Package:SOT-23

Datasheet:801-83-016-10-268101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	801
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Socket
Number of Positions	16
Number of Rows	1
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3A
Terminal Pitch	2.54mm
Insulation Height	0.116 2.95mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Contact Length - Post	0.108 2.75mm
Number Of PCB Rows	1
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Polarization Key	POLARIZED HOUSING
Durability	500 Cycles
Plating Thickness	30μin
Contact Finish Thickness - Mating	29.5μin 0.75μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

801-83-016-10-268101 Product Details

801-83-016-10-268101 Overview

You get it in Socket packaging.There is a Through Hole mounting type for the device.We pack the product in a Bulk case.This product is in the 801 Series.There is a mounting hole at Through Hole.-55°C~125°C Operating Temperature is what the device runs at.
