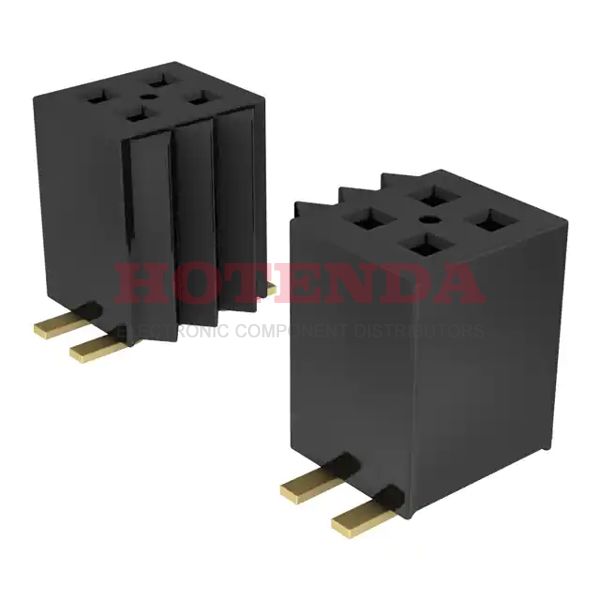

Name: FLE-125-01-G-DV-TR
Brand: Samtec Inc.
SKU: FLE-125-01-G-DV-TR
Price: 4.71000 USD
Availability: InStock

new-10%

FLE-125-01-G-DV-TR

Manufacturer part number:FLE-125-01-G-DV-TR

Manufacturer:Samtec Inc.

Description:2 RowsReceptacleSolderPhosphor BronzeSurface MountTape & Reel (TR)GoldLiquid Crystal Polymer (LCP)50 PositionsFemale Socket

Case Package:SOT-23

Datasheet:FLE-125-01-G-DV-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2007
Series	FLE
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	50
Number of Rows	2
Additional Feature	E.L.P
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	2A per Contact
Total Number of Contacts	50
Orientation	Straight
Depth	3.33mm
Insulation Height	0.172 4.37mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Current Rating	1.75A
Pitch - Mating	0.050 1.27mm
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Row Spacing - Mating	0.050 (1.27mm)
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Body Breadth	0.131 inch
Housing Color	Black
Contact Resistance	15mOhm
Mating Contact Pitch	0.05 inch
Polarization Key	POLARIZED HOUSING
Insertion Force-Max	.417 N
Withdrawl Force-Min	.417 N
Length	31.86mm
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Contact Finish Thickness - Post	3.00μin 0.076μm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

FLE-125-01-G-DV-TR Product Details

FLE-125-01-G-DV-TR Overview

The product comes in a package of Receptacle.Surface Mount is the mount type.It's packaged in a Tape & Reel (TR) case.The product is a member of the FLE Series.Additionally, there are features like E.L.P, just to name a few.This device operates at a temperature of -55°C~125°C.
