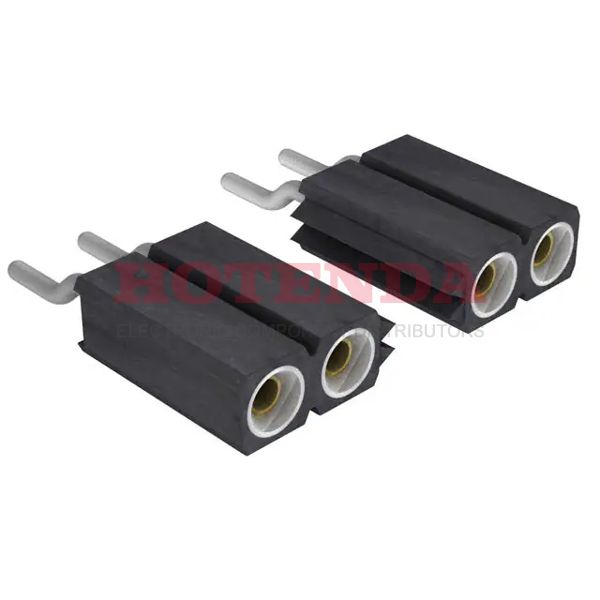

Name: 801-83-015-40-001101
Brand: Preci-Dip
SKU: 801-83-015-40-001101
Price: 2.20000 USD
Availability: InStock

new-10%

801-83-015-40-001101

Manufacturer part number:801-83-015-40-001101

Manufacturer:Preci-Dip

Description:1 RowsSocketSolderBeryllium CopperSurface Mount, Right AngleBulkGoldPolycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled15 PositionsFemale Socket

Case Package:SOT-23

Datasheet:801-83-015-40-001101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Beryllium Copper
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	801
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Socket
Number of Positions	15
Number of Rows	1
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3A
Total Number of Contacts	15
Terminal Pitch	2.54mm
Insulation Height	0.100 2.54mm
Style	Board to Board
Number of Positions Loaded	All
Reach Compliance Code	unknown
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Number Of PCB Rows	1
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Depth	0.469 inch
Polarization Key	POLARIZED HOUSING
Durability	500 Cycles
Plating Thickness	30μin
Contact Finish Thickness - Mating	29.5μin 0.75μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

801-83-015-40-001101 Product Details

801-83-015-40-001101 Overview

The product comes in a package of Socket.Surface Mount, Right Angle is the mounting type.In order to package the product, a Bulk case is used.It belongs to the 801 Series of products.Part Surface Mount is mounted to the part.In this case, the device operates at -55°C~125°C Operating Temperature.
