Name: 803-83-024-65-410101
Brand: Preci-Dip
SKU: 803-83-024-65-410101
Price: 4.23000 USD
Availability: InStock

new-10%

803-83-024-65-410101

Manufacturer part number:803-83-024-65-410101

Manufacturer:Preci-Dip

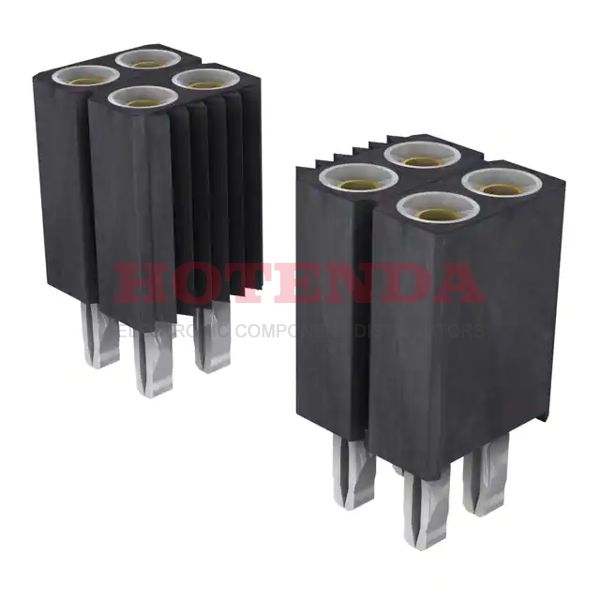

Description:2 RowsSocketPress-Fit, SolderBeryllium CopperThrough HoleBulkGoldPolycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled24 PositionsFemale Socket

Case Package:SOT-23

Datasheet:803-83-024-65-410101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	803
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Press-Fit, Solder
Connector Type	Socket
Number of Positions	24
Number of Rows	2
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3A
Insulation Height	0.276 7.00mm
Style	Board to Board
Number of Positions Loaded	All
Reach Compliance Code	unknown
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.110 2.79mm
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Contact Resistance	10mOhm
Insulation Resistance	10000000000Ohm
Mating Contact Pitch	0.1 inch
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	1400VAC V
Durability	500 Cycles
Plating Thickness	30μin
Contact Finish Thickness - Mating	29.5μin 0.75μm
Length - Termination	0.094 inch
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

803-83-024-65-410101 Product Details

803-83-024-65-410101 Overview

The product comes in a package of Socket.Through Hole is the mounting type.To package the product, a Bulk case is used.It's from the 803 Series.Mounted by Through Hole.The device is operating at -55°C~125°C Operating Temperature.
