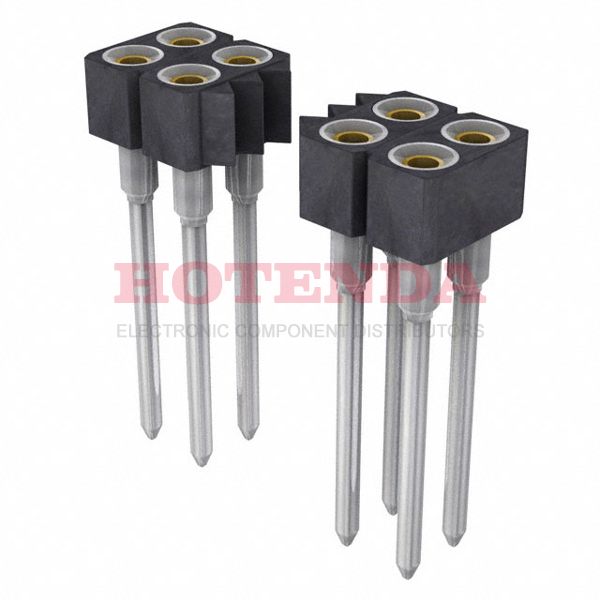

Name: 422-87-230-41-001101
Brand: Preci-Dip
SKU: 422-87-230-41-001101
Price: 3.34000 USD
Availability: InStock

new-10%

422-87-230-41-001101

Manufacturer part number:422-87-230-41-001101

Manufacturer:Preci-Dip

Description:2 Rows Socket Wire Wrap Beryllium Copper Through Hole Bulk Gold Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled 30 Positions Female Socket

Case Package:SOT-23

Datasheet:422-87-230-41-001101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	422
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Wire Wrap
Connector Type	Socket
Number of Positions	30
Number of Rows	2
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3A
Insulation Height	0.193 4.90mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	1.5 inch
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.370 9.40mm
Number Of PCB Rows	2
Contact Finish - Post	Tin
Body Depth	0.193 inch
Contact Resistance	10mOhm
Insulation Resistance	10000000000Ohm
Mating Contact Pitch	0.1 inch
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	1400VAC V
Durability	500 Cycles
Contact Finish Thickness - Mating	Flash
Length - Termination	0.37 inch
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

422-87-230-41-001101 Product Details

422-87-230-41-001101 Overview

The packaging contains Socket.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number 422 belongs to the 422 Series.There is a Through Hole mount on the part.This device operates at a temperature of -55°C~125°C.
