Name: M20-7821546
Brand: Harwin Inc.
SKU: M20-7821546
Price: 1.92000 USD
Availability: InStock

new-10%

M20-7821546

Manufacturer part number:M20-7821546

Manufacturer:Harwin Inc.

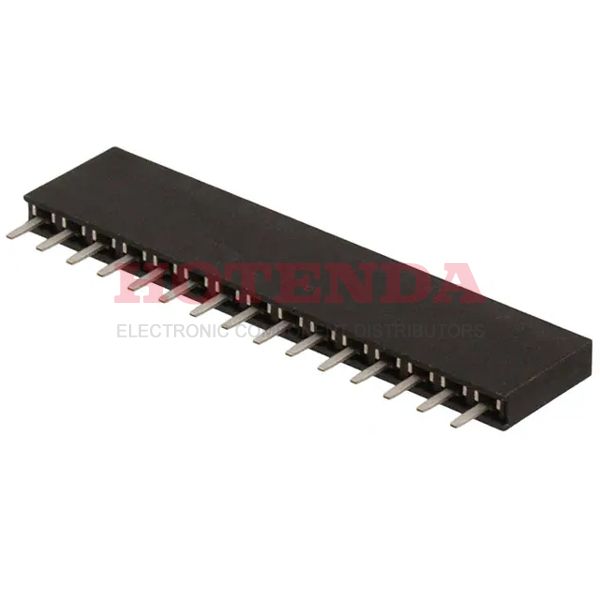

Description:1 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Tin Polyamide (PA6T), Nylon 6T 15 Positions Female Socket

Case Package:SOT-23

Datasheet:M20-7821546 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	SIL
Contact Shape	Square
Insulation Material	Polyamide (PA6T), Nylon 6T
Housing Material	Polyamide
Operating Temperature	-40°C~105°C
Packaging	Tube
Published	2012
Series	M20
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	15
Applications	General Purpose, Industrial, Telecommunications
Number of Rows	1
Voltage - Rated	1000V
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Orientation	Straight
Terminal Pitch	2.54mm
Depth	2.5mm
Insulation Height	0.335 8.51mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Contact Length - Post	0.118 3.00mm
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.098 inch
Contact Gender	Female
UL Flammability Code	94V-0
Housing Color	Black
Rated Current (Signal)	3A
Contact Resistance	20mOhm
Max Current Rating	3A
Polarization Key	POLARIZED HOUSING
Durability	300 Cycles
Insertion Force-Max	4.8928 N
Length	38.5mm
Stack Height (Mating)	11.04mm 12.63mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

M20-7821546 Product Details

M20-7821546 Overview

Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Tube case is used to package the product.A product of the M20 Series, it belongs to the range of products of that series.SIL means there is a device enclosed in the packaging.This device may be used for the purpose of General Purpose, Industrial, Telecommunications.Through Hole represents the mounting point for the part.-40°C~105°C Operating Temperature is the default operating temperature for the device.
