TOP261LN Overview

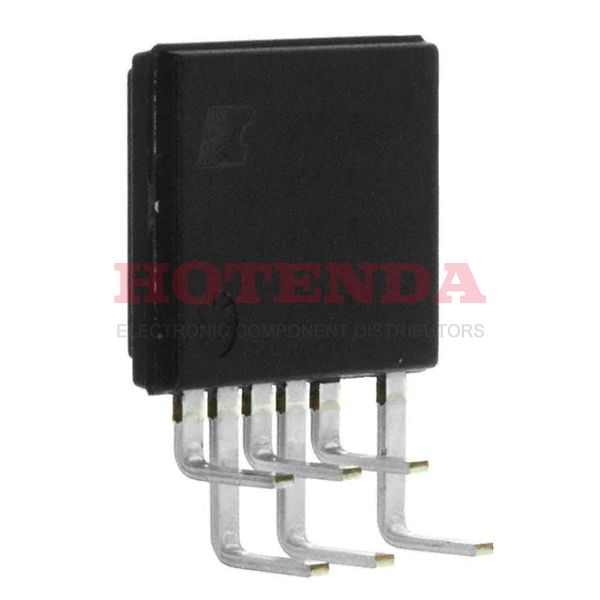

In the 7-SSIP, 6 Leads, Exposed Pad, Formed Leads package, the ac to dc converter is embedded.The AC/DC power converter is available in Tube .In this case, the AC/DC converter is mounted in the way of Through Hole .It is necessary to operate the ac dc converter at a temperature of -40°C~150°C TJ °C in order for it to perform properly.This AC DC converter employs ANALOG CIRCUIT analog IC type.The switching frequency reaches 66kHz 132kHz .There are a total of 6 terminations in it.On the ac/dc converter, there are 6 pins.It is a member of TOPSwitch?-HX manufacturer family.A total of 1 outputs are available for processing.AC to DC converter is included in Switching Regulator or Controllers .As a result, its output voltage is 12V .A coverter produces 177W watts of output power.This converter requires a minimum supply voltage of 85V volts.Across the converter, a maximum supply voltage of 265V may be applied.
TOP261LN Features
Packaged with 7-SSIP, 6 Leads, Exposed Pad, Formed Leads
Switching Frequency at 66kHz 132kHz
With 6 pins
TOP261LN Applications
There are a lot of Power Integrations TOP261LN AC DC Converters applications.
- AC/DC Adaptors/Chargers for Cell Phones
- Utility meters
- Adapters for Handheld Electronics
- PDAs
- Battery chargers for cellular phones
- USB type-c v1.2 chargers with optional VDM
- Linear Adapter Replacements
- IoT Applications
- Battery Chargers
- ZigBee
