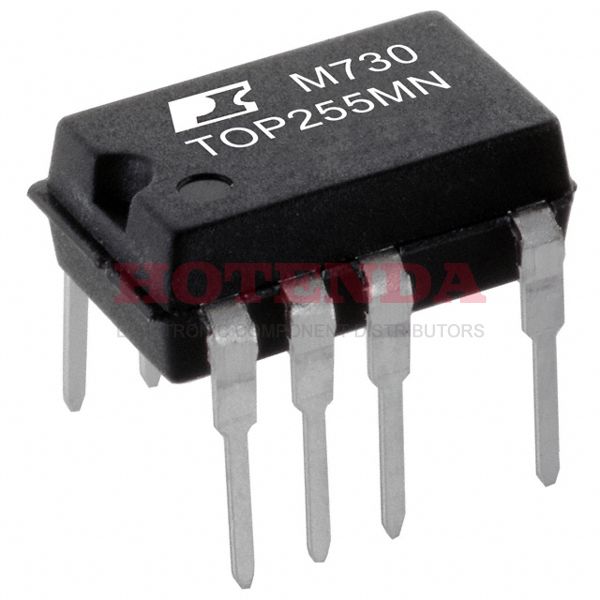

TOP255MN Overview
A ac to dc converter of the package 10-SDIP (0.300, 7.62mm), 9 Leads contains the ac to dc converter.In Tube case, the ac dc converter is available.There is a AC/DC converter mounted in the way of Through Hole .To deliver its performance, the ac dc converter should be operated at a temperature of -40°C~150°C TJ .In this AC DC converter, the analog IC type is ANALOG CIRCUIT .As a result, it has a total of 9 terminations.In this ac/dc converter, there are 10 pins.The ac dc converters are suitable to mount by Through Hole .It belongs to the family of TOPSwitch?-HX manufacturers.There are 1 outputs to be processed.The ac to dc conversions are included in Switching Regulator or Controllers .2.72A is set as the output current.There is 700V output voltage from this AC/DC converter.The power AC DC is capable of high efficiency when operated at a frequency of 66kHz .It is possible to read the REACH SVHC standard at: No SVHC .It is assumed that a coverter generates 30W as its output power.The input voltage (AC) that can be applied in the AC to DC power converter should under 265V .A minimum supply voltage of -300mV is sufficient for it to operate.
TOP255MN Features
Packaged with 10-SDIP (0.300, 7.62mm), 9 Leads
With 10 pins
Output Current at 2.72A
TOP255MN Applications
There are a lot of Power Integrations TOP255MN AC DC Converters applications.
- Open Frame Switching Power Supply
- Smartphones
- Replaces linear transformers
- Adapter for ADSL
- Auxiliary Power Supply
- PDAs
- WiFi Wireless
- Battery chargers for cordless
- Adaptors for Portable Media Player
- Vacuum Cleaner
