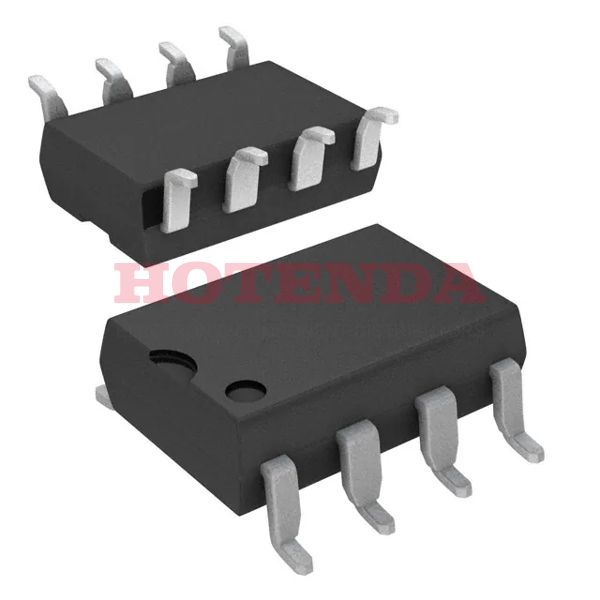

Name: TOP223GN
Brand: Power Integrations
SKU: TOP223GN
Availability: InStock

new-10%

TOP223GN

Manufacturer part number:TOP223GN

Manufacturer:Power Integrations

Description:8 Terminations8 Pin AC to DC power converterTOPSwitch?-II Series 1 Outputs100kHz Min 85V VMax 265V V

Case Package:SOT-23

Datasheet:TOP223GN Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	23 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Number of Pins	8
Operating Temperature	-40°C~150°C TJ
Packaging	Tube
Published	2001
Series	TOPSwitch®-II
JESD-609 Code	e3
Part Status	Not For New Designs
Moisture Sensitivity Level (MSL)	4 (72 Hours)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	PURE MATTE TIN
Max Power Dissipation	25W
Technology	CMOS
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	250
Number of Functions	1
Terminal Pitch	2.54mm
[email protected] Reflow Temperature-Max (s)	40
Pin Count	8
Number of Outputs	1
Qualification Status	Not Qualified
Output Voltage	5.7V
Analog IC - Other Type	SWITCHING REGULATOR
Nominal Supply Current	1.2mA
Topology	Boost, Buck, Flyback, Forward
Control Mode	VOLTAGE-MODE
Frequency - Switching	100kHz
Control Technique	PULSE WIDTH MODULATION
Internal Switch(s)	Yes
Fault Protection	Current Limiting, Over Temperature
Max Duty Cycle	70 %
Max Supply Voltage (AC)	265V
Duty Cycle	67%
Output Isolation	Isolated
Voltage - Breakdown	700V
Min Supply Voltage (AC)	85V
Height Seated (Max)	3.73mm
Length	9.59mm
Width	6.35mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

TOP223GN Product Details

TOP223GN Overview

There is a ac to dc converter embedded in package 8-SMD, Gull Wing .In Tube case, the ac dc converter is available.There is a AC/DC converter mounted in the way of Surface Mount .To deliver its performance, the ac dc converter should be operated at a temperature of -40°C~150°C TJ .An analog IC of type SWITCHING REGULATOR is employed in this AC DC converter.As a result, the switching frequency reaches 100kHz .It has a total of 8 terminations.The ac/dc converter has 8 pins.A total of 8 pins are present on the ac-dc converter.Surface Mount are the recommended mounting method for the ac dc converters.It belongs to a manufacturer family of TOPSwitch?-II .In this AC to DC transformer, there are 1 outputs to run.As a result, its output voltage is 5.7V .In order for the converter to function properly, the supply voltage must be at least 85V .There is 265V maximum supply voltage across the converter.
