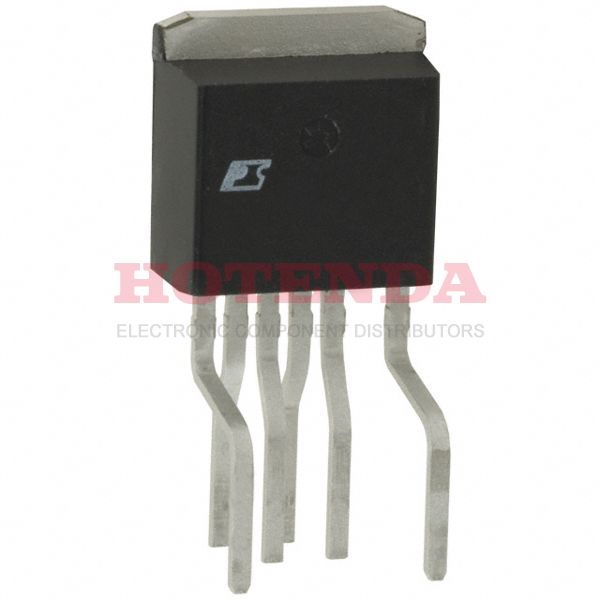

TOP250FN Overview
In the TO-262-7 (Formed Leads), 6 Leads package, the ac to dc converter is embedded.The AC/DC power converter is available in Tube .A AC/DC converter of this type is mounted in the way of Through Hole .This ac dc converter should be operated at a temperature of -40°C~150°C TJ °C so that it can deliver its performance.A SWITCHING REGULATOR analog integrated circuit is used in this AC DC converter.When the switching frequency reaches 66kHz~132kHz , the circuit is closed.As a result, it has had 6 terminations.There are 3 pins in the ac-dc converter.It is suitable for mounting by Through Hole .It belongs to the family of TOPSwitch?-GX manufacturers.The ac to dc conversions are contained in Switching Regulator or Controllers .The voltage output by this AC/DC converter is 12V .An amount of current of 10.08A can be supplied to the ac to dc inverter.In order for the converter to function properly, the supply voltage must be at least 85V .Across the converter, the maximum supply voltage is 265V .
TOP250FN Features
Packaged with TO-262-7 (Formed Leads), 6 Leads
Switching Frequency at 66kHz~132kHz
TOP250FN Applications
There are a lot of Power Integrations TOP250FN AC DC Converters applications.
- Auxiliary Power Supplies
- Standby power supplies for TV
- Linear Adapter Replacements
- Power adapters for network devices
- Switching AC-DC Adapter
- SMPS house keeping power supplies
- USB type-c v1.2 chargers with optional VDM
- Power tools fast chargers with trickle and on/off
- DVD players
- Battery chargers for cellular phones
