TOP249R-TL Overview

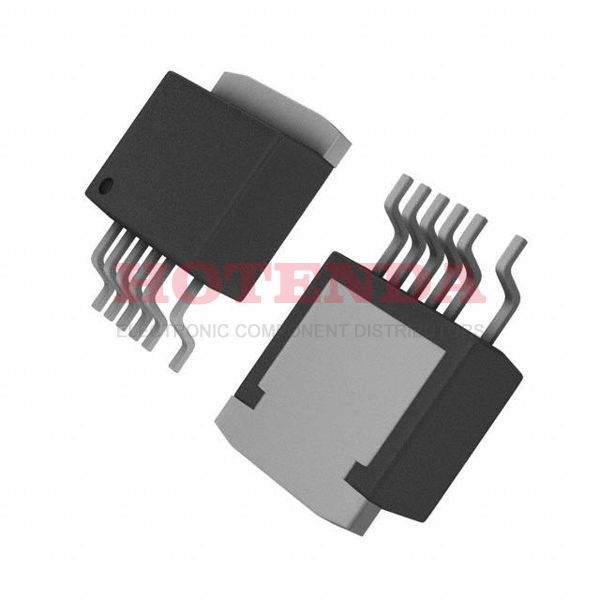

It is embedded in package TO-263-7, D2Pak (6 Leads + Tab), TO-263CB .Tape & Reel (TR) case is available for the ac dc converter.As you can see, this AC/DC converter is mounted in the way of Surface Mount .The ac dc converter should be operated at a temperature of -40°C~150°C TJ °C to deliver its optimal performance.Analog ICs of type SWITCHING REGULATOR are used in this AC DC converter.When the switching frequency reaches 66kHz~132kHz , the circuit is closed.There have been 6 terminations of this program.The pins of the ac-dc converter total to 4 .It is a member of TOPSwitch?-GX manufacturer family.Switching Regulator or Controllers includes the ac to dc conversions.As a result, its output voltage is 12V .Ac to dc inverters can be powered by up to 8.64A current.There is a minimum supply voltage of 85V across the converter.There is a maximum supply voltage of 265V across the converter.
TOP249R-TL Features
Packaged with TO-263-7, D2Pak (6 Leads + Tab), TO-263CB
Switching Frequency at 66kHz~132kHz
TOP249R-TL Applications
There are a lot of Power Integrations TOP249R-TL AC DC Converters applications.
- Standby Power for General Off-Line Applications
- Power adapters for monitors
- Appliances
- Adapter/Charger for Cordless Phones
- Linear Adapter Replacements
- Home appliances
- Consumer electronics
- AC-DC Output Power Conversion Applications
- Low power ac?dc Adapters for Chargers
- Adapters
