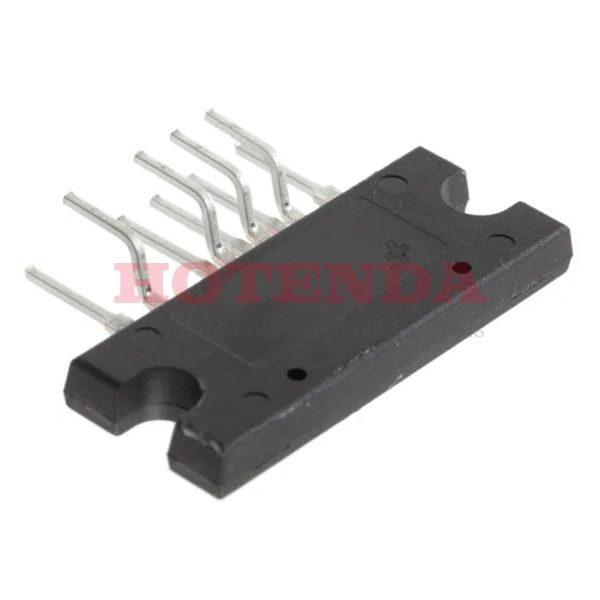

FSFR1800 Overview
This ac to dc converter is embedded in package 10-SIP Module, 9 Leads, Formed Leads .It is available in Tube AC/DC power converter.As you can see, this AC/DC converter is mounted in the way of Through Hole .For the ac dc converter to perform properly, it should be operated at a temperature of -40°C~130°C TJ °C.Up to 300kHz is the switching frequency.Vcc/Vdd can be used within the range of 11.3V~25V supply voltage.A total of 9 terminations have been recorded.Approximately 9 pins are present on the ac/dc converter.Through Hole is a suitable mounting point for the ac dc converters.It belongs to a manufacturer family of FSFR .It is possible to search for similar acdc converters by using the FSFR1800 family.There are 1 outputs to run.The output current is set to 8A .There is 24V voltage output from it.In the following link, you will find the REACH SVHC standard: No SVHC .Interfacing ICs conduct when there is 400V supply voltage.The maximum supply current is 11mA .It is imperative that this AC to DC converter is set to 7.5V at all times.It can be determined that the resistance of this power AC DC is 770mOhm .
FSFR1800 Features
Packaged with 10-SIP Module, 9 Leads, Formed Leads
Switching Frequency at Up to 300kHz
With 9 pins
Output Current at 8A
Operating Supply Voltage at the range of 400V
Resistance : 770mOhm
FSFR1800 Applications
There are a lot of ON Semiconductor FSFR1800 AC DC Converters applications.
- Adapters for Handheld Electronics
- PDAs
- Adapter/Charger for Cell
- Remotely-controlled appliances
- DVD players
- Handheld/Battery-Powered Systems
- Battery chargers for smart phones
- Home Appliance Applications
- Wall switches
- LED Driver
