TOP247F Overview

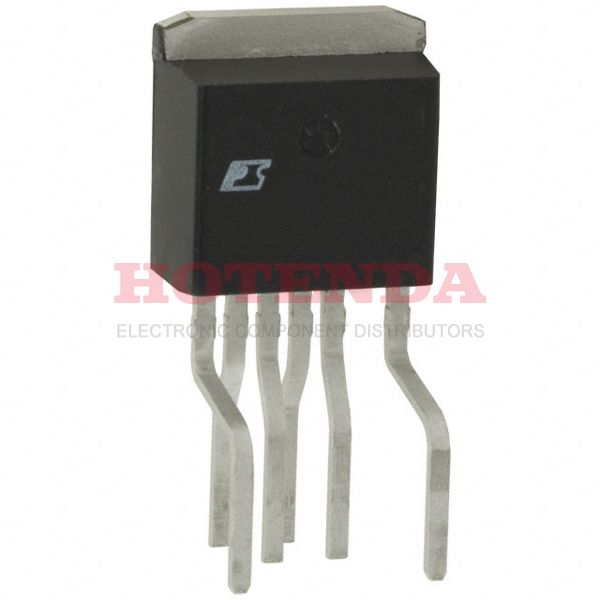

TO-262-7 (Formed Leads), 6 Leads is the package in which the ac to dc converter is embedded.In Bulk AC/DC power converter, it is available.There is a AC/DC converter mounted in the way of Through Hole .For the ac dc converter to perform at its best, it should be operated at a temperature of -40°C~150°C TJ °C.In this AC DC converter, an analog integrated circuit (IC) of type SWITCHING REGULATOR is employed.Switching frequency reaches 66kHz~132kHz Hz.Total terminations are 6 .There are 3 pins in the ac-dc converter.It belongs to a manufacturer family of TOPSwitch?-GX .There are a ac to dc conversions included in Switching Regulator or Controllers .An amount of current of 5.76A is the maximum that can be supplied to the ac to dc inverter.When utilizing this ACDC converter, REQUIRES AN AC SUPPLY OF 85 TO 265 V can also be discovered.
TOP247F Features
Packaged with TO-262-7 (Formed Leads), 6 Leads
Switching Frequency at 66kHz~132kHz
TOP247F Applications
There are a lot of Power Integrations TOP247F AC DC Converters applications.
- Set Top Boxes (STB)
- Universal input AC/DC adapters (15W - 45W)
- AC/DC Adaptors/Chargers for Cell Phones
- AC/DC LED Driver applications
- Replacements for bulky plug-in transformers
- Auxiliary Power Supplies
- Chargers for cell/cordless phones
- Smartphones
- LED lights
- Automotive Telematics
