Name: LNK623DG
Brand: Power Integrations
SKU: LNK623DG
Availability: InStock

new-10%

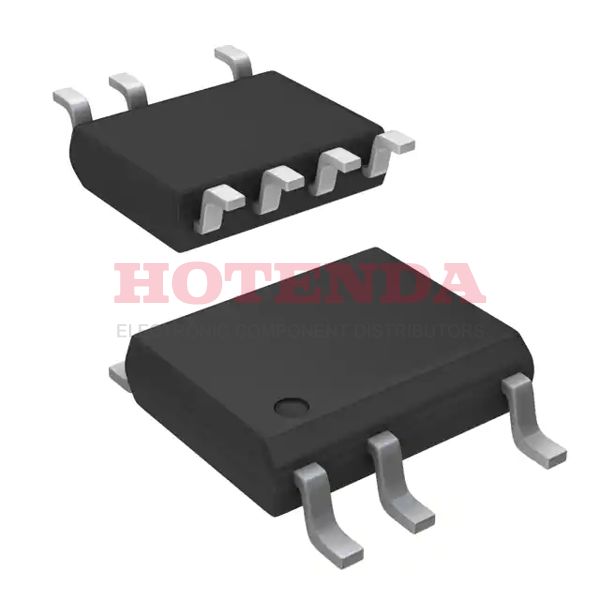

LNK623DG

Manufacturer part number:LNK623DG

Manufacturer:Power Integrations

Description:7 Terminations8 Pin AC to DC power converterLinkSwitch?-CV Series 3 OutputsMin 85V VMax 265V V

Case Package:SOT-23

Datasheet:LNK623DG Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width), 7 Leads
Surface Mount	YES
Number of Pins	8
Operating Temperature	-40°C~150°C TJ
Packaging	Tube
Published	2002
Series	LinkSwitch®-CV
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	4 (72 Hours)
Number of Terminations	7
Terminal Finish	Matte Tin (Sn)
Power Rating	9W
Max Power Dissipation	9W
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Supply Voltage	230V
Terminal Pitch	1.27mm
Frequency	100kHz
Pin Count	8/7
JESD-30 Code	R-PDSO-G7
Number of Outputs	3
Output Voltage	700V
Analog IC - Other Type	ANALOG CIRCUIT
Operating Supply Current	440μA
Power Dissipation	5W
Output Current	600mA
Output Power	6W
Topology	Flyback
Min Input Voltage	85V
Max Input Voltage	265V
Internal Switch(s)	Yes
Fault Protection	Current Limiting, Open Loop, Over Temperature, Short Circuit
Max Duty Cycle	54 %
Max Supply Voltage (AC)	265V
Duty Cycle	54%
Output Isolation	Isolated
Voltage - Breakdown	725V
Min Input Voltage (AC)	85V
Max Input Voltage (AC)	265V
Min Supply Voltage (AC)	85V
Height Seated (Max)	1.75mm
Length	4.9mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant

LNK623DG Product Details

LNK623DG Overview
