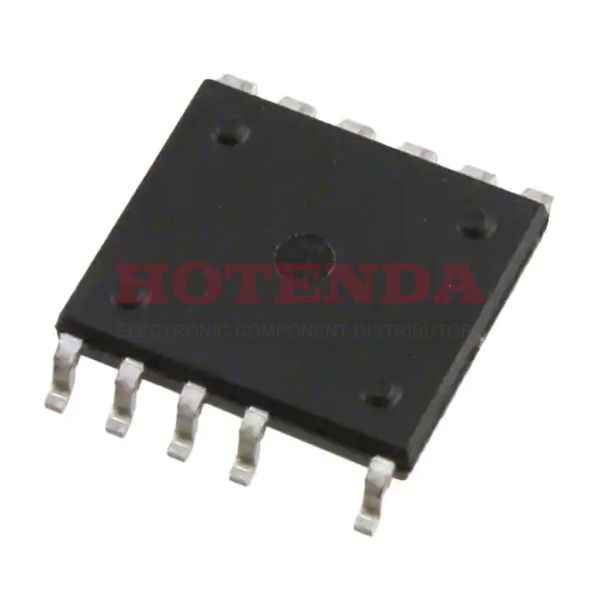

LNK6763K Overview
There is a ac to dc converter embedded in package 12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad .In Tube AC/DC power converter, it is available.In this case, the AC/DC converter is mounted in the way of Surface Mount .For the ac dc converter to perform properly, it should be operated at a temperature of -40°C~150°C TJ °C.In this AC DC converter, the analog IC type is ANALOG CIRCUIT .At this point, the switching frequency reaches 120kHz~136kHz .In total, there are 11 terminations.On the ac/dc converter, there are 11 pins.The ac dc converters is suitable for mounting by Surface Mount .A member of the LinkSwitch?-HP manufacturer family, it has the following characteristics.The number of outputs to run is 1 .AC to DC converter is set to 12.5μA for the output current.This AC/DC converter produces a voltage of 50V as its output.You are able to read the REACH SVHC standard at: No SVHC .The AC to DC converter can be powered under 265V voltage.The output power of a coverter is assumed to be 21W .A voltage of less than 85V V can be used with the AC to DC inverter.This converter requires a minimum supply voltage of 85V volts.Across the converter, the maximum supply voltage is 265V .There should be a voltage (AC) that can be applied to the AC to DC power converter under 265V .
LNK6763K Features
Packaged with 12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad
Switching Frequency at 120kHz~136kHz
With 11 pins
Output Current at 12.5μA
LNK6763K Applications
There are a lot of Power Integrations LNK6763K AC DC Converters applications.
- AC?DC USB chargers for Cameras
- AC/DC Adaptors/Chargers for E-books
- Home Appliance Applications
- Air Conditioning
- Laptops and personal digital assistants
- Adapter for ADSL
- LED lights
- Air conditioners
- Dimmers
- RCC SMPS
