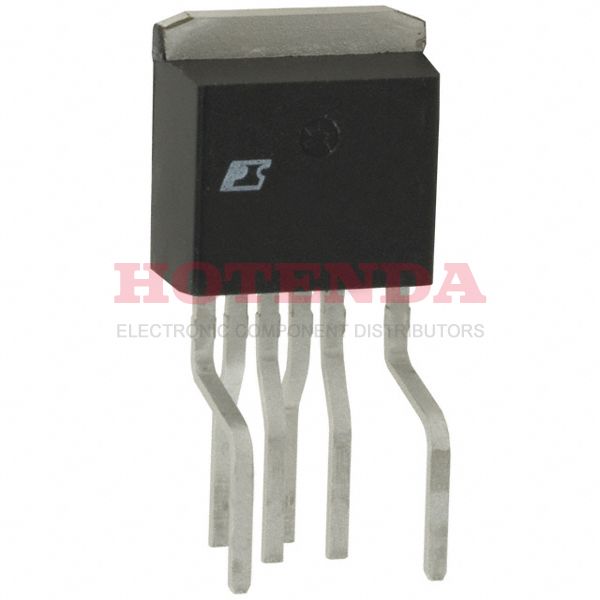

TOP246FN Overview
This ac to dc converter is embedded in package TO-262-7 (Formed Leads), 6 Leads .The AC/DC power converter is available in Tube .The AC/DC converter is mounted in the way of Through Hole .It is necessary to operate the ac dc converter at a temperature of -40°C~150°C TJ °C in order for it to perform properly.A SWITCHING REGULATOR analog integrated circuit is used in this AC DC converter.As soon as the switching frequency reaches 66kHz~132kHz , the circuit is closed.A total of 6 terminations have been recorded.There are 3 pins on the ac-dc converter.It is a member of TOPSwitch?-GX manufacturer family.The ac to dc conversions are included in Switching Regulator or Controllers .Its output voltage amounts to 12V .Currently, the maximum current that the ac to dc inverter can take is 4.32A .A voltage of 85V is the minimum supply voltage across the converter.There is a maximum voltage supply across the converter of 265V volts.
TOP246FN Features
Packaged with TO-262-7 (Formed Leads), 6 Leads
Switching Frequency at 66kHz~132kHz
TOP246FN Applications
There are a lot of Power Integrations TOP246FN AC DC Converters applications.
- Standby and Auxiliary Power Supplies
- Z-Wave
- Air conditioners
- Replacements for bulky plug-in transformers
- Dimmers
- Battery chargers for cellular phones
- Adapters for Handheld Electronics
- Cellular phone chargers
- Standby power supplies for IR
- Adapter/Charger for Cordless Phones
