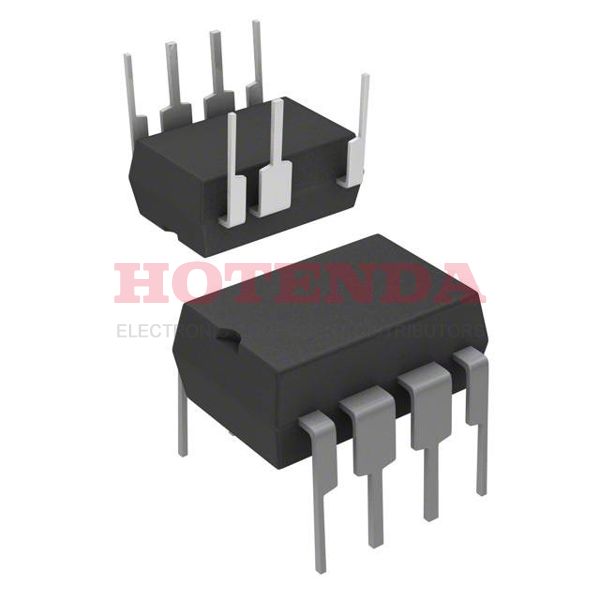

TOP233P Overview
In the 8-DIP (0.300, 7.62mm), 7 Leads package, the ac to dc converter is embedded.You can get it in AC/DC power converter Tube .This AC/DC converter is mounted in the way of Through Hole .It is recommended that the ac dc converter be operated at a temperature of -40°C~150°C TJ °C in order to achieve its full performance.The AC DC converter uses a type SWITCHING REGULATOR analog integrated circuit.As a result, the switching frequency reaches 66kHz~132kHz .In total, there are 7 terminations.The pins of the ac-dc converter total to 8 .It is a member of TOPSwitch?-FX manufacturer family.Switching Regulator or Controllers includes the ac to dc conversions.This AC/DC converter produces a voltage of 12V as its output.The maximum current that can be supplied to the ac to dc inverter is 1.6A .There should be no less than 85V voltage across the converter.Across the converter, a maximum supply voltage of 265V may be applied.
TOP233P Features
Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 66kHz~132kHz
TOP233P Applications
There are a lot of Power Integrations TOP233P AC DC Converters applications.
- Adapter/Charger for Cordless Phones
- AC/DC Adaptors/Chargers for E-books
- Auxiliary Power Supplies
- AC--DC Adapter
- Set -Top Box (STB) Power Supply
- Standby Power Supplies
- Standby Power for General Off-Line Applications
- Adapters for Handheld Electronics
- Laptops
- LED Driver
