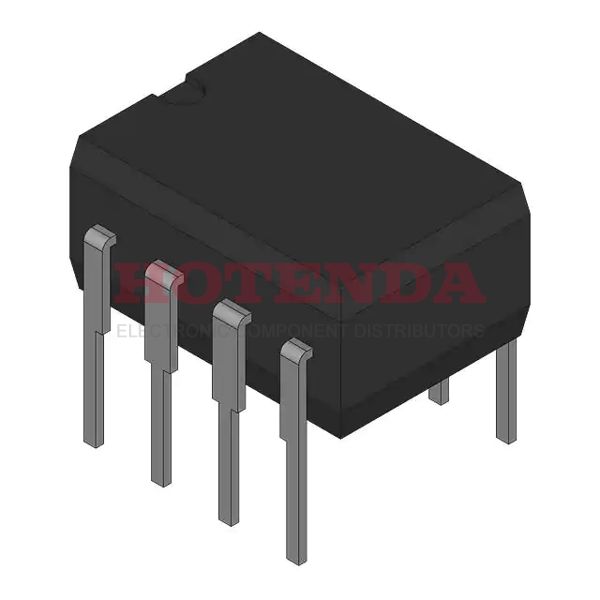

FSDH321 Overview
There is a ac to dc converter embedded in package 8-DIP (0.300, 7.62mm) .The AC/DC power converter is available in Tube .It is mounted in the way of Through Hole .The ac dc converter should be operated at a temperature of -25°C~85°C TA °C to deliver its optimal performance.In this AC to DC transformer, the switching frequency is 100kHz .It can be used within the range of 8V~20V supply voltage (Vcc/Vdd).The ac/dc converter has 8 pins.Through Hole is a suitable mounting point for the ac dc converters.The AC to DC converter belongs to the manufacturer family of FPS? .Similar acdc converters can be found using the FSDH321 family.A total of 1 outputs are available for processing.We are setting the output current to 2A .Its output voltage is650V .The power AC DC is capable of high efficiency when operated at a frequency of 100GHz .The power AC DC comes with a 8-DIP case for packing.Approximately 3mA amps of supply current can be handled by the power AC DC.When the maximum 85°C is set, the AC to DC power converter runs steadily.This isolated switch's minimum working temperature must not be less than -25°C .The power AC DC's resistance can be determined to be 14Ohm .The AC to DC power supply consumes quiescent current at 3mA .
FSDH321 Features
Packaged with 8-DIP (0.300, 7.62mm)
Switching Frequency at 100kHz
With 8 pins
Output Current at 2A
Resistance : 14Ohm
FSDH321 Applications
There are a lot of ON Semiconductor FSDH321 AC DC Converters applications.
- Lighting controls
- DVD players
- Adapter/Charger for Cordless Phones
- Standby Power for General Off-Line Applications
- AC?DC USB chargers for Cell Phones
- USB type-c v1.2 chargers with optional VDM
- White goods
- ZigBee
- AC/DC Adaptors/Chargers for Cordless Phone
- Dimmers
