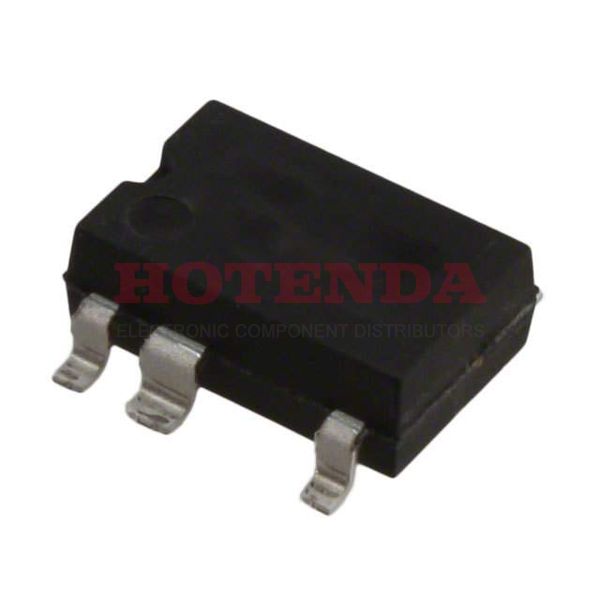

TOP258GN Overview
There is a ac to dc converter embedded in package 8-SMD (7 Leads), Gull Wing .The AC/DC power converter is available in Tube .In this case, the AC/DC converter is mounted in the way of Surface Mount .It is necessary to operate the ac dc converter at a temperature of -40°C~150°C TJ °C in order for it to perform properly.A ANALOG CIRCUIT analog integrated circuit is used in this AC DC converter.At this point, the switching frequency reaches 66kHz .A total of 8 terminations have been recorded.On this ac/dc converter, there are 7 pins.There are no problem mounting the ac dc converters by Surface Mount .A member of the TOPSwitch?-HX manufacturer family, it has the following characteristics.In this AC to DC transformer, there are 1 outputs to run.Switching Regulator or Controllers contains the ac to dc conversions.There is 12V output voltage from this AC/DC converter.Coverters generate 50W as their output power.In order for the converter to function properly, the supply voltage must be at least 85V .This converter can operate at a maximum supply voltage of 265V .
TOP258GN Features
Packaged with 8-SMD (7 Leads), Gull Wing
Switching Frequency at 66kHz
With 7 pins
TOP258GN Applications
There are a lot of Power Integrations TOP258GN AC DC Converters applications.
- Standby Power Supply
- Standby and Auxiliary Power Supplies
- Battery chargers for cellular phones
- Auxiliary Power Supplies
- Low power ac?dc Adapters for Chargers
- Replaces linear transformers
- Utility meters
- ZigBee
- Linear Adapter Replacements
- RCC SMPS
