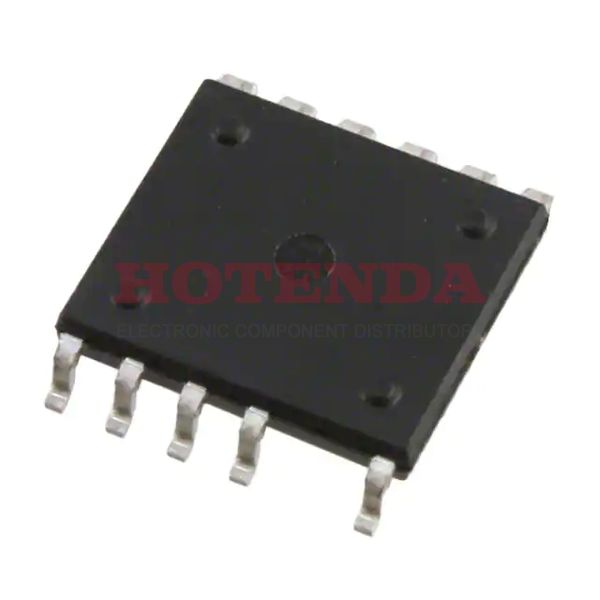

LNK6775K Overview
The ac to dc converter is embedded in 12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad package.In Tube case, the ac dc converter is available.There is a mounting point for this AC/DC converter in the way of Surface Mount .The ac dc converter needs to be operated at -40°C~150°C TJ °C in order to perform.In this AC DC converter, an analog integrated circuit (IC) of type ANALOG CIRCUIT is employed.When the switching frequency reaches 120kHz~136kHz , the process is complete.There are a total of 11 terminations.On this ac/dc converter, there are 11 pins.It are possible to mount thare ac dc converters by Surface Mount .This AC to DC converter belongs to the LinkSwitch?-HP manufacturer family.AC to DC converter is necessary to run 1 outputs.Currently, the output current is set to 12.5μA .The output voltage of the AC/DC converter is 50V .REACH SVHC standard can be found at No SVHC .An input voltage of 265V is available for powering the AC to DC converter.Coverters generate 26W in terms of output power.A voltage of less than 85V V can be used with the AC to DC inverter.Supply voltage across the converter must be 85V at all times.A maximum voltage of 265V can be applied across the converter.An input voltage (AC) should be applied under 265V to the AC to DC power converter.
LNK6775K Features
Packaged with 12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad
Switching Frequency at 120kHz~136kHz
With 11 pins
Output Current at 12.5μA
LNK6775K Applications
There are a lot of Power Integrations LNK6775K AC DC Converters applications.
- Appliance Power Supplies
- WiFi Wireless
- Open Frame Switching Power Supply
- Standby Power for General Off-Line Applications
- Power adapters for monitors
- Low-Voltage I/O System Power
- Humidifier
- Power Adaptors
- Automotive Telematics
- Standby power supplies for TV
