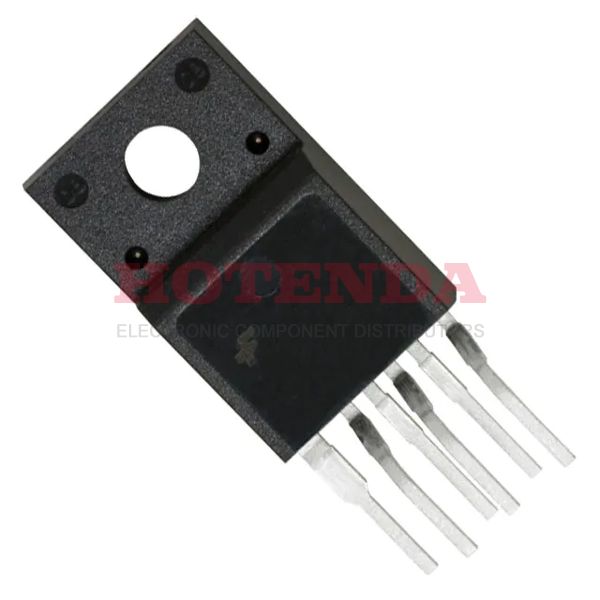

FSGM0565RBUDTU Overview
An embedded ac to dc converter is included in TO-220-6 Full Pack, Formed Leads package.The AC/DC power converter Tube is available for this product.There is a mounting point for this AC/DC converter in the way of Through Hole .For the ac dc converter to perform at its best, it should be operated at a temperature of -40°C~125°C TJ °C.An analog IC of type SWITCHING CONTROLLER is employed in this AC DC converter.When the switching frequency reaches 66kHz , the circuit is closed.As long as the supply voltage (Vcc/Vdd) is within the range of 7.5V~26V , the AC/DC converter may be used.In total, there are 6 terminations.In this ac/dc converter, there are 6 pins.The ac dc converters are suitable to mount by Through Hole .It is a member of FPS? manufacturer family.If you select the FSGM0565R family, you will be able to search for similar acdc converters.There are 1 outputs to run.AC to DC converter is included in Switching Regulator or Controllers .Current output is set to 2.75A .The AC to DC inverter can be used with an input voltage of less than 26V V.AC to DC converter can handle a maximum supply current of 2mA .The resistance of this power AC DC is 1.8Ohm .Using the AC to DC power converter with 70W maximum output power is possible.
FSGM0565RBUDTU Features
Packaged with TO-220-6 Full Pack, Formed Leads
Switching Frequency at 66kHz
With 6 pins
Output Current at 2.75A
Resistance : 1.8Ohm
FSGM0565RBUDTU Applications
There are a lot of ON Semiconductor FSGM0565RBUDTU AC DC Converters applications.
- White goods
- Power Adaptors
- AC-DC Output Power Conversion Applications
- MP3
- Shaver Charger
- AC?DC USB chargers for Cameras
- Battery Chargers
- USB type-c v1.2 chargers with optional VDM
- AC/DC Adaptors/Chargers for Cordless Phone
- Linear Adapter Replacements
