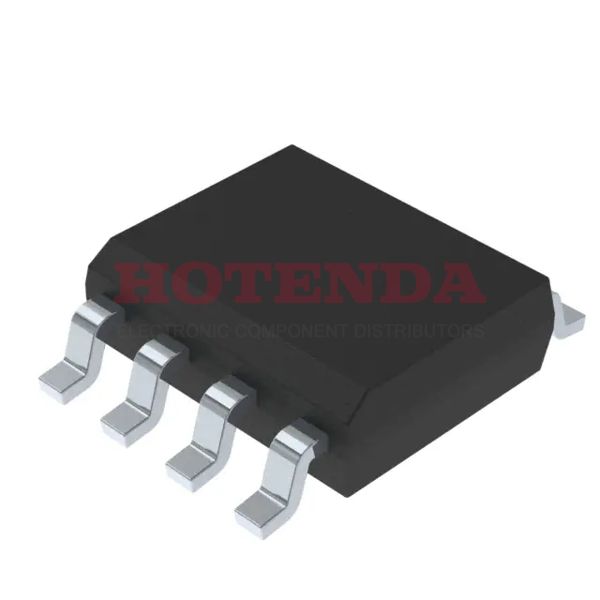

LNK4014D-TL Overview
There is a ac to dc converter embedded in package 8-SOIC (0.154, 3.90mm Width) .The AC/DC power converter type is Tape & Reel (TR) .As you can see, this AC/DC converter is mounted in the way of Surface Mount .For the ac dc converter to perform properly, it should be operated at a temperature of -25°C~125°C TJ °C.A SWITCHING REGULATOR analog integrated circuit is used in this AC DC converter.At this point, the switching frequency reaches 65kHz .Supply voltage (Vcc/Vdd) does not need to exceed 5V~16.5V .Surface Mount is a suitable mounting point for the ac dc converters.It belongs to a manufacturer family of LinkSwitch?-4 .
LNK4014D-TL Features
Packaged with 8-SOIC (0.154, 3.90mm Width)
Switching Frequency at 65kHz
LNK4014D-TL Applications
There are a lot of Power Integrations LNK4014D-TL AC DC Converters applications.
- Chargers for cell/cordless phones
- AC/DC Adaptors/Chargers for Cell Phones
- Adapter for ADSL
- Adaptors for Portable Media Player
- 3.3V power supplies
- AC?DC USB chargers for Cell Phones
- Utility meters
- AC?DC USB chargers for Tablets
- DVD players
- LED Driver
