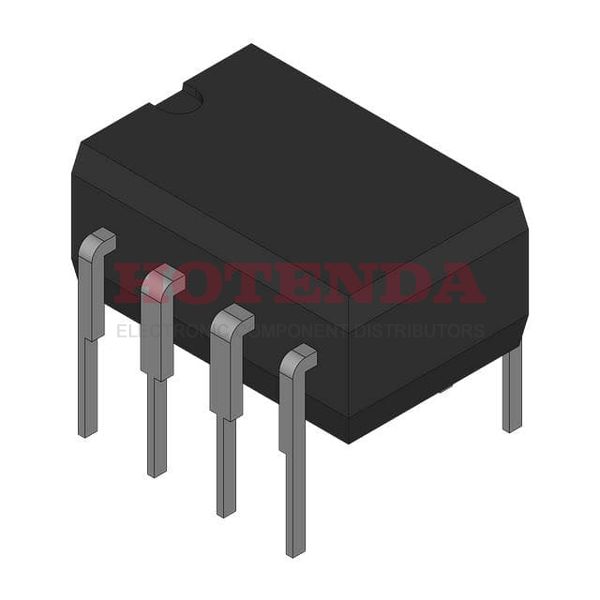

UCC28083P Overview
The ac to dc converter is embedded in 8-DIP (0.300, 7.62mm) package.There is a AC/DC power converter of Tube available.There is a AC/DC converter mounted in the way of Through Hole .For the ac dc converter to perform properly, it should be operated at a temperature of -40°C~85°C TA °C.A SWITCHING CONTROLLER analog integrated circuit is used in this AC DC converter.The switching frequency reaches 50kHz~1MHz .Within the range of 8.3V~15V supply voltage (Vcc/Vdd), it can be used.There are a total of 8 terminations.On this ac/dc converter, there are 8 pins.In this ac-dc converter, there are 8 pins.It is possible to search for similar acdc converters by using the UCC28083 family.A total of 2 outputs are to be processed.The ac to dc conversions are contained in Switching Regulator or Controllers .We are setting the output current to 1A .In this AC to DC transformer, the output voltage is 500mV .As long as AC to DC converter is operated at frequency 1MHz ,it is capable of attaining high efficiency.You are able to read the REACH SVHC standard at: No SVHC .
UCC28083P Features
Packaged with 8-DIP (0.300, 7.62mm)
Switching Frequency at 50kHz~1MHz
With 8 pins
Output Current at 1A
UCC28083P Applications
There are a lot of Texas Instruments UCC28083P AC DC Converters applications.
- Replaces linear transformers
- Wireless System
- Standby Power for General Off-Line Applications
- Vacuum Cleaner
- AC--DC Adapter
- Adapters for Handheld Electronics
- Home appliances
- Standby power supplies for VCR
- Standby and Auxiliary Power Supplies
- Appliances
