FSFM300N Overview

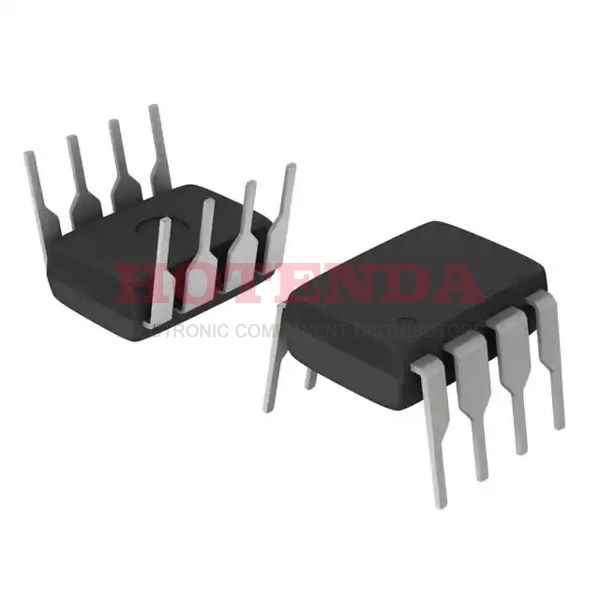

8-DIP (0.300, 7.62mm) is the package in which the ac to dc converter is embedded.The AC/DC power converter type is Tube .Through Hole mounts this AC/DC converter.For the ac dc converter to perform at its best, it should be operated at a temperature of -25°C~85°C TA °C.SWITCHING CONTROLLER analog ICs are employed in this AC DC converter.There is 67kHz switching frequency.The AC/DC converter is capable of being used when the supply voltage is 8V~21V (Vcc/Vdd).Total terminations are 8 .In this ac/dc converter, there are 8 pins.The ac dc converters are suitable to mount by Through Hole .This AC to DC converter belongs to the FPS? family of manufacturers.If you select the FSFM300 family, you will be able to search for similar acdc converters.There are 1 outputs to run.The output current is set to 1.41A .There is 650V output voltage from this AC/DC converter.Approximately 5mA amps of supply current can be handled by the power AC DC.A measurement of the resistance of this power AC DC indicates that it is 2.2Ohm .It is possible to use the AC to DC power converter with a maximum output power of 30W .
FSFM300N Features
Packaged with 8-DIP (0.300, 7.62mm)
Switching Frequency at 67kHz
With 8 pins
Output Current at 1.41A
Resistance : 2.2Ohm
FSFM300N Applications
There are a lot of ON Semiconductor FSFM300N AC DC Converters applications.
- USB type-c v1.2 chargers with optional VDM
- Appliance Power Supplies
- Adapter for ADSL
- Records
- Laptops
- Power adapters for network devices
- Automotive Infotainment
- Cleaners
- Laptops and personal digital assistants
- IoT Applications
