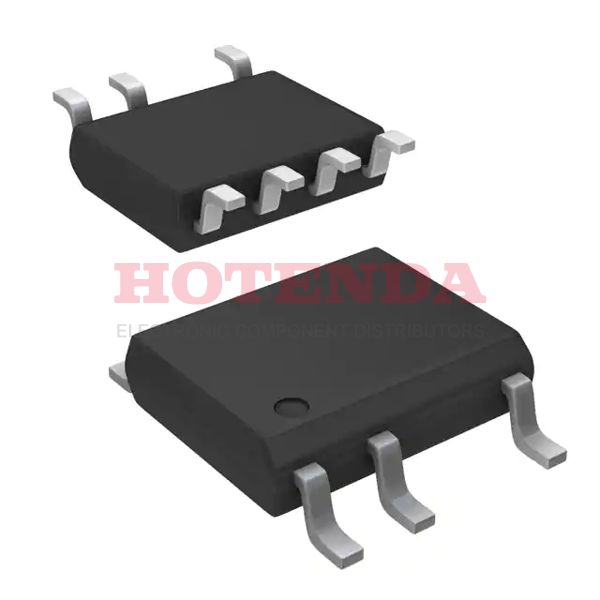

LNK306DG Overview
8-SOIC (0.154, 3.90mm Width), 7 Leads is the package in which the ac to dc converter is embedded.The ac dc converter is available in Tube case.In this case, the AC/DC converter is mounted in the way of Surface Mount .For the ac dc converter to perform at its best, it should be operated at a temperature of -40°C~150°C TJ °C.The AC DC converter uses a type SWITCHING REGULATOR analog integrated circuit.Switching frequency reaches 66kHz Hz.There are a total of 8 terminations in it.A ac/dc converter with 7 pins is available.Up to 8 pins are present on the ac-dc converter.Currently, it is acdc converter of the manufacturer family of LinkSwitch?-TN .There are 1 outputs to be run.Currently, the output current is set to 360mA .There is 12V output voltage from this AC/DC converter.Using this ACDC converter, REQUIRES AN AC SUPPLY OF 85 TO 256V is also accessible.This converter requires a minimum supply voltage of 85V volts.Across the converter, a maximum supply voltage of 265V may be applied.
LNK306DG Features
Packaged with 8-SOIC (0.154, 3.90mm Width), 7 Leads
Switching Frequency at 66kHz
With 7 pins
Output Current at 360mA
LNK306DG Applications
There are a lot of Power Integrations LNK306DG AC DC Converters applications.
- White goods
- Standby Power Supplies
- Power Adaptors
- Utility meters
- Cellular phone chargers
- AC/DC Adaptors/Chargers for Cell Phones
- Standby Power Supplies
- Adapter for ADSL
- Power tools
- AC?DC USB chargers for Tablets
