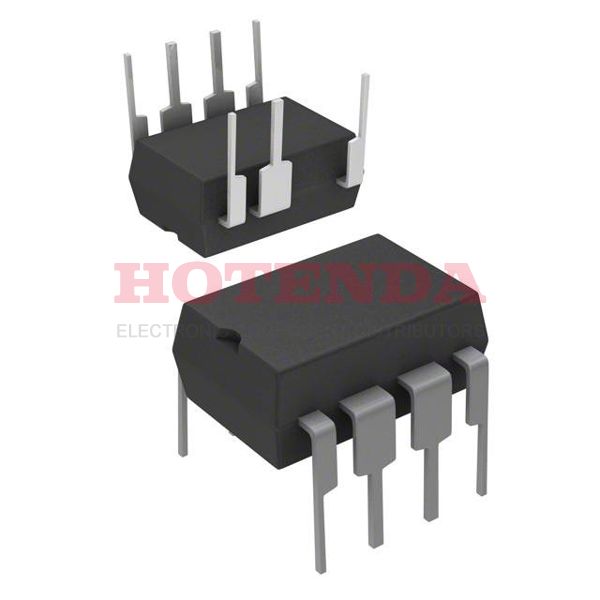

LNK500P Overview
This ac to dc converter is embedded in package 8-DIP (0.300, 7.62mm), 7 Leads .You can get it in AC/DC power converter Bulk .There is a AC/DC converter mounted in the way of Through Hole .Ideally, the ac dc converter should be operated at a temperature of -40°C~150°C TJ degrees Celsius.The AC DC converter uses a type SWITCHING REGULATOR analog integrated circuit.In this AC to DC transformer, the switching frequency is 30kHz~42kHz .A total of 7 terminations have been recorded.There are a total of 8 pins on the ac-dc converter.A member of the LinkSwitch? manufacturer family, it has the following characteristics.The input voltage with the maximal value of 6V can be ensured on the basis of unique technique.An amount of current of 0.4A can be supplied to the ac to dc inverter.Using this ACDC converter, it is also possible to identify REQUIRES AN AC SUPPLY OF 85 TO 265 V .
LNK500P Features
Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 30kHz~42kHz
LNK500P Applications
There are a lot of Power Integrations LNK500P AC DC Converters applications.
- Standby power supplies for TV
- Laptops and personal digital assistants
- Portable Apparatus
- Air Conditioning
- MP3
- AC/DC Adaptors/Chargers for Cordless Phone
- 3.3V power supplies
- Cleaners
- Adapter/Charger for Cordless Phones
- ZigBee
