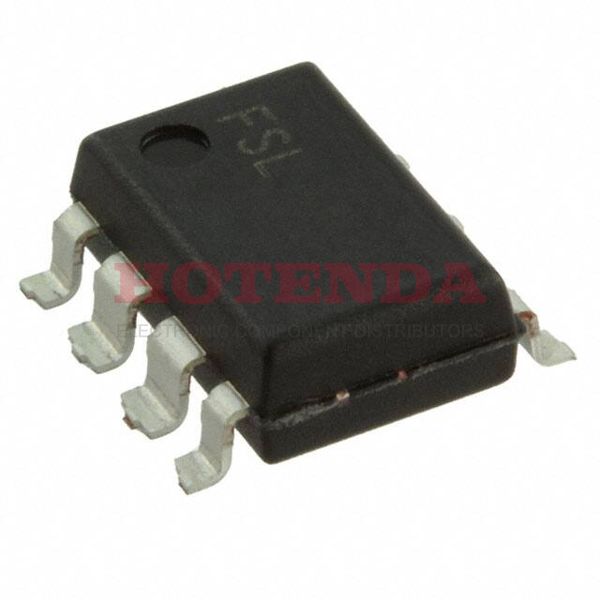

FSQ510M Overview
This ac to dc converter is embedded in package 8-SMD (7 Leads), Gull Wing .You can get it in AC/DC power converter Tube .As you can see, this AC/DC converter is mounted in the way of Surface Mount .Ideally, the ac dc converter should be operated at a temperature of -40°C~140°C TJ degrees Celsius.The switching frequency reaches 94.3kHz~132kHz .This AC/DC converter is designed for use within the range of 6.7V~20V supply voltage (Vcc/Vdd).There are 7 pins on this ac/dc converter.It are possible to mount thare ac dc converters by Surface Mount .This AC to DC converter belongs to the FPS? manufacturer family.The FSQ510 family can be used to search for similar acdc converters.A total of 1 outputs are available for processing.Switching Regulator or Controllers includes the ac to dc conversions.We have set the output current to 280mA .Approximately 1mA amps of supply current can be handled by the power AC DC.The resistance of this power AC DC is 28Ohm .Using the AC to DC power converter with 6W maximum output power is possible.
FSQ510M Features
Packaged with 8-SMD (7 Leads), Gull Wing
Switching Frequency at 94.3kHz~132kHz
With 7 pins
Output Current at 280mA
Resistance : 28Ohm
FSQ510M Applications
There are a lot of ON Semiconductor FSQ510M AC DC Converters applications.
- Humidifier
- AC?DC USB chargers for Cameras
- Rice Cooker
- Battery chargers for cordless
- Lighting controls
- Chargers for cell/cordless phones
- Replacements for bulky plug-in transformers
- Battery Chargers
- Small off-line low voltage power supplies
- Battery chargers for media tablets
