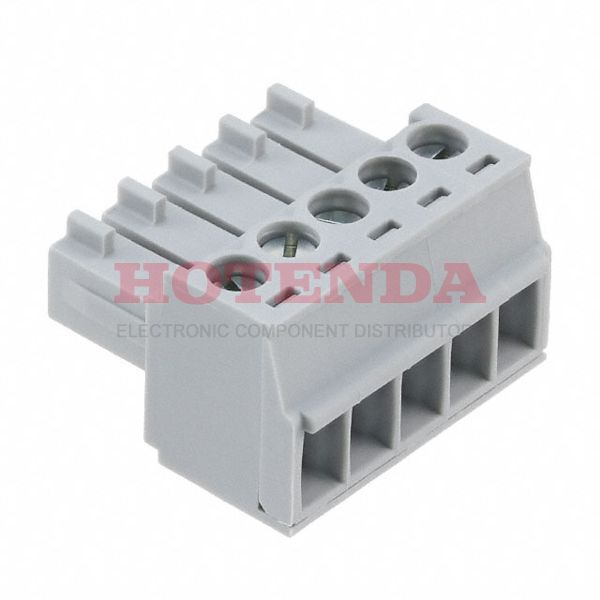

Name: 5434573
Brand: Phoenix Contact
SKU: 5434573
Price: 5.80000 USD
Availability: InStock

new-10%

5434573

Manufacturer part number:5434573

Manufacturer:Phoenix Contact

Description:5434573 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:5434573 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2012
Series	BCP
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Plug, Female Sockets
Number of Positions	5
Color	Gray
Number of Rows	1
Gender	Male
Voltage - Rated	160V
Additional Feature	STANDARD: UL 94V-0, PA
Pitch	0.138 3.50mm
Orientation	Right Angle
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Number of Ways	5
Safety Approval	CB; CUL; IEC; UL; VDE
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

5434573 Product Details

5434573 Overview

This device is mounted in the Free Hanging (In-Line) position.Packaging for the product is carried out via a Bulk case.This is from the BCP Series.There are also other features like STANDARD: UL 94V-0, PA, to name a few.By Free Hanging it's mounted.Ensure that this chip's supply voltage does not exceed 160V volts.
