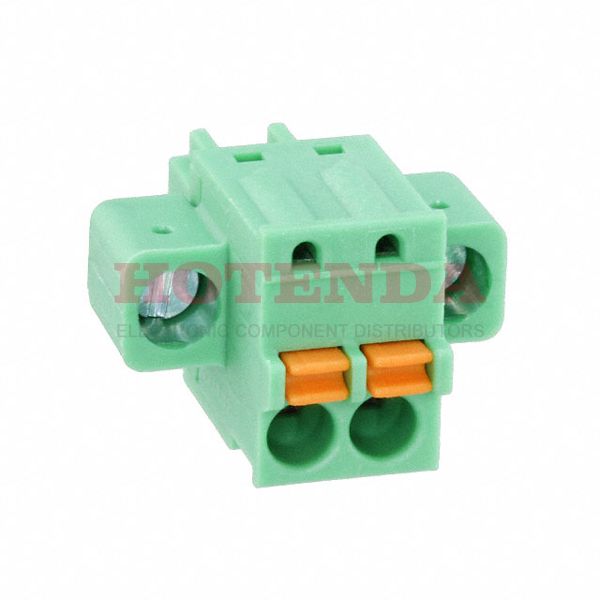

Name: 1851232
Brand: Phoenix Contact
SKU: 1851232
Price: 4.38000 USD
Availability: InStock

new-10%

1851232

Manufacturer part number:1851232

Manufacturer:Phoenix Contact

Description:1851232 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1851232 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	101.999997g
Packaging	Bulk
Published	2011
Series	COMBICON FK-MCP
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	160V
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Straight
Insulation Height	0.488 12.40mm
Current Rating	8A
Termination Style	Screwless - Leg Spring, Push-In Spring
Number of Contacts	2
Voltage	300V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Number of Ways	2
Safety Approval	UL; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	9mm
Fastening Method	SPRING LOADED
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1851232 Product Details

1851232 Overview

This device has a mounting type of Free Hanging (In-Line).This product is packaged in a case marked Bulk.This product is part of the COMBICON FK-MCP Series.Its Mating Flange feature renders it more powerful in many ways.You've got Free Hanging, Panel mounted on the part.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
