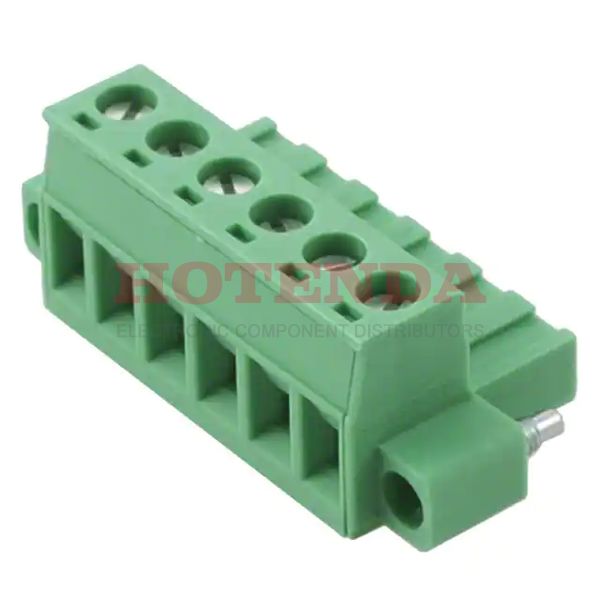

Name: 1786873
Brand: Phoenix Contact
SKU: 1786873
Price: 7.94000 USD
Availability: InStock

new-10%

1786873

Manufacturer part number:1786873

Manufacturer:Phoenix Contact

Description:1786873 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1786873 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Plating	Tin
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	749.788188g
Packaging	Bulk
Published	2011
Series	COMBICON MSTB
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	18.2mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	6
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	7mm
Width	40.01mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1786873 Product Details

1786873 Overview

Screw, Socket packaging is included.Its mounting type is Free Hanging (In-Line).Packaging for the product is carried out via a Bulk case.This is from the COMBICON MSTB Series.Other features include PA, 94V-0, to name just a few.As a result of its Mating Flange feature, it possesses a great deal of power.Mounting of the part is based on Free Hanging, Panel.This chip should not be supplied with voltages greater than zero.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
