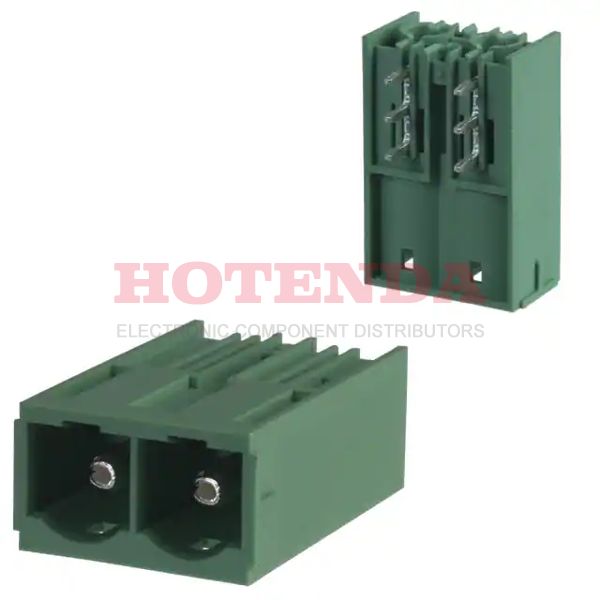

Name: 1998933
Brand: Phoenix Contact
SKU: 1998933
Price: 6.27000 USD
Availability: InStock

new-10%

1998933

Manufacturer part number:1998933

Manufacturer:Phoenix Contact

Description:1998933 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1998933 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Silver
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	8.18g
Packaging	Bulk
Published	2007
Series	COMBICON PC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	IDC
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	1kV
HTS Code	8536.69.40.40
Pitch	0.400 10.16mm
Orientation	Right Angle
Depth	4.4mm
Insulation Height	0.528 13.40mm
Current Rating	76A
Termination Style	Solder
Approval Agency	CB, UL
Voltage	600V
Contact Tail Length	0.157 4.00mm
Max Current Rating	76A
Number of Levels	1
Current	5A
Number of Poles	2
Voltage - UL	300V
Number of Decks	1
Current - UL	66A
Number of Ways	2
Header Orientation	90°, Right Angle
Fastening Method	CONNECTOR
Height	23.36mm
Length	5mm
Width	34mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1998933 Product Details

1998933 Overview

This product is packaged in a Plug box.Through Hole is the mounting type for the device.It is necessary to use a Bulk case for packaging the product.This product is in the COMBICON PC Series.It is best used at temperatures below 85°C.The device must run at -40°C degrees.Through Hole represents the mounting point for the part.Several of the benefits of this part are also shared by other Header, Male Pins, Shrouded (4 Side) products.
