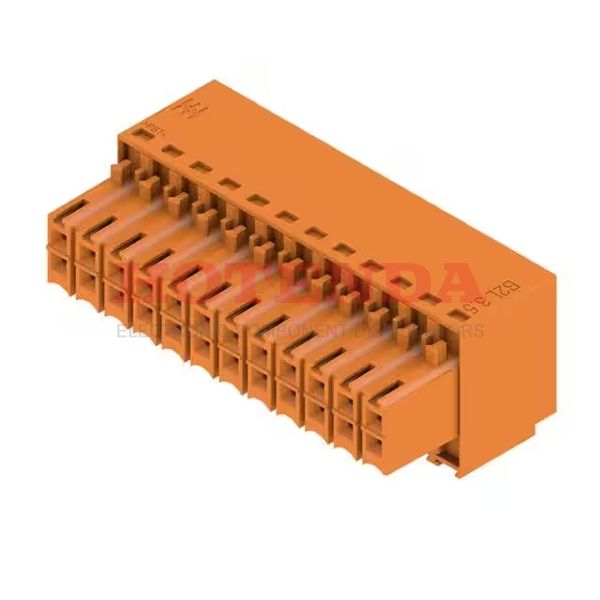

Name: 1747860000
Brand: Weidmüller
SKU: 1747860000
Price: 14.76000 USD
Availability: InStock

new

1747860000

Manufacturer part number:1747860000

Manufacturer:Weidmüller

Description:1747860000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1747860000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate B2L
Pbfree Code	yes
Part Status	Active
Termination	Crimp
Type	Plug, Female Sockets
Number of Positions	24
Color	Orange
Number of Rows	2
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	24
Orientation	Straight
Ingress Protection	IP20
Depth	20.6mm
Insulation Height	0.618 15.70mm
Termination Style	Screwless - Spring Cage, Tension Clamp
Insulation Resistance	1MOhm
Voltage	150V
Max Supply Voltage	150V
Max Current Rating	10A
Number of Levels	2
Current	10A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	200V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1mm2
Wire Strip Length	7mm
Current - IEC	10.3A
Number of Positions Per Level	12
Length	42mm
Width	20.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1747860000 Product Details

1747860000 Overview

There is a mounting type of Free Hanging (In-Line) for this device.It has been determined that a Bulk case is necessary to package the product.This product is in the Omnimate B2L Series.Cable, Free Hanging is used to mount the part.This device runs at -50°C~100°C operating temperature.This chip should not be operated above 150V volts.There are many benefits that this part shares with other Plug, Female Sockets products as well.
