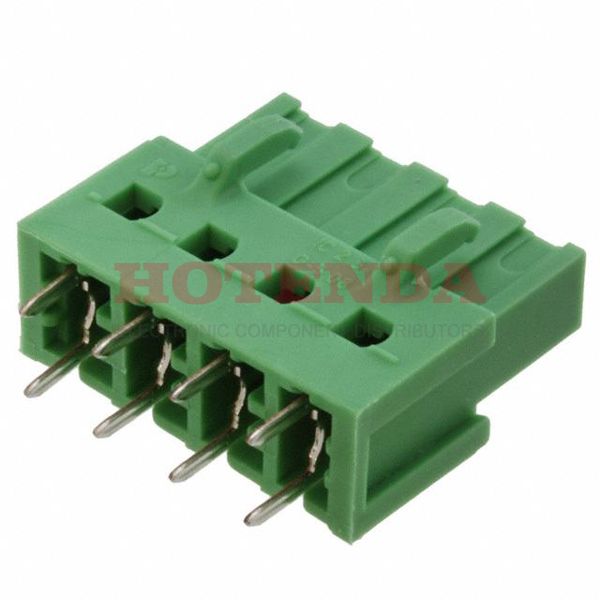

Name: 1785968
Brand: Phoenix Contact
SKU: 1785968
Price: 5.00000 USD
Availability: InStock

new-10%

1785968

Manufacturer part number:1785968

Manufacturer:Phoenix Contact

Description:1785968 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1785968 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	165.000008g
Packaging	Bulk
Published	2000
Series	COMBICON ICV
Feature	Retention Latches
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Socket
Type	Header, Female Sockets
Number of Positions	4
Color	Green
Number of Rows	1
Voltage - Rated	320V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	10.2mm
Insulation Height	0.748 19.00mm
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.142 3.60mm
Max Current Rating	12A
Number of Levels	1
Current	10A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	630V
Number of Ways	4
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	4
Height	22.32mm
Length	22.32mm
Width	22.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1785968 Product Details

1785968 Overview

This product is packaged in a Socket box.There is a mounting type of Through Hole for this device.To package the product, we use a Bulk case.The product belongs to the COMBICON ICV Series.A number of features make it more powerful because of its Retention Latches feature.There is a mounting hole at Through Hole.The benefts of this part are similar to those of other Header, Female Sockets products.
